Description

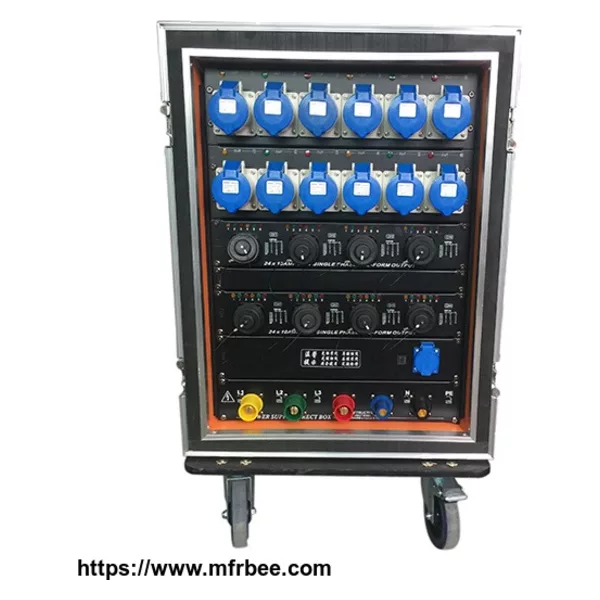

KoinStage customized Three-phase five
wire60channelsXXX.
Equipment housed in a plywood flight case enclosure,with recessed Socket
and
Switchgear panels for mechanical protection.60 channels has separately by12 pcs 32A 3pin socket and
8 pcs 19pin socapex, it can protect the power case very good.400Acamlock input, there
are
yellow/green/red/blue/black color.Equipment has a main switch and separate switch,protect overload and short circuit.
This type ofXXX Applicable to event lighting Audio/Video and Led wall applications.
Specification
Flight Case | 15U,5inch wheel,fireproofing,quakeproof,LED lighting at the top inside |
Input | 400A camlock,3 phase 5wire(5 colors),AC380Vinput AC220Voutput |
Output | 60 channels32A 3pin socket and 19pin socapexwith indicator light |
Breaker | main breaker, air switch (Delixi) |
Meter | ampere and voltage meter |
Wire | copper busbar main wire, inflaming retarding,terminal fixed with Screw glue |
Plug | with 400A camlock plug,32A 3pin plugs,19pin socapex |
Working Temperature | 0℃-45℃ |
relative humidity | +40% - +80% |
Atmospheric pressure | 0.8-1.6 |
Working environment | well-ventilated, non smoke dust |
Weight | 80Kg |
