Description

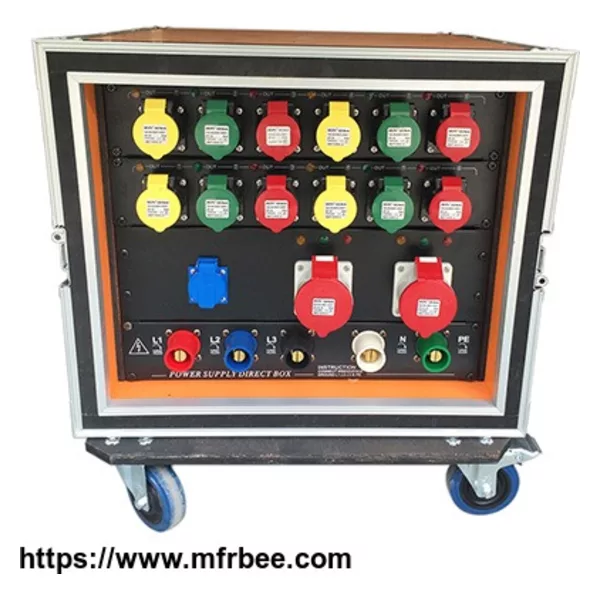

KoinStage customized Three-phase five wire18 channelspower
distro.
Equipment housed in a plywood flight case enclosure,with recessed Socket and
Switchgear panels for mechanical
protection.18 channels has separately by12 pcs16A 3pin socketand 2pcs 32A 5pin socket, it can protect the power case
very good.400A connector, there are
white/green/red/blue/black color.Equipment has a main switch and separate switch,protect
overload and short circuit.
This type ofpower distroApplicable to event lighting Audio/Videoand Led wall
applications.
Specification
Flight Case | 9U,14inch wheel,fireproofing,quakeproof,LED lighting at the top inside |
Input | 400A camlock,3 phase 5wire(5 colors),AC380Vinput AC220Voutput |
Output | 18 channels 16A 3pin socket and 32A 5pin socketwith indicator light |
Breaker | main breaker, air switch (Delixi) |
Meter | ampere and voltage meter |
Wire | copper busbar main wire, inflaming retarding,terminal fixed with Screw glue |
Plug | with 400A camlock plug, 16A 3pin plugs,32A 5pin plugs |
Working Temperature | 0℃-45℃ |
relative humidity | +40% - +80% |
Atmospheric pressure | 0.8-1.6 |
Working environment | well-ventilated, non smoke dust |
Weight | 50Kg |
