1. Brief Introduction

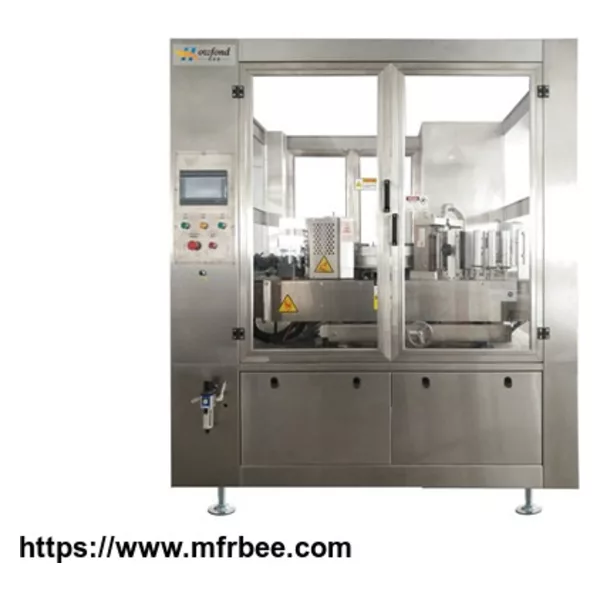

RRJ024P Hot melt glue labeling machine is our 3rdgeneration inline OPP/BOPP labeler, with 4~6 labeling positions; it works at speed 12,000~24,000bph (500ml). This machine is widely used for 0.1~2.5 liters round bottles. In the field of Juice, pure water, carbonated and energy drinks.
This machine can cut OPP、BOPP、plastic and paper labels to different requirement and need.
2. Advantage of RRJ24P hot melt glue labeling machine
(1) Reliable and steady labels cutting system, no need to adjust the cutter again and again.
(2)OPP、BOPP、plastic and paper material of labels are available with this machine.
(3) Economical for bulk production.
(4) Simplicity design, nice extrinsic feature.
(5) High labeling precision 0.5~1mm.
(6) Steady and constant working by this machine.
(7) Reliable and Simplicity gluing system, safety and good performance.
(8) Easy and quick parts changing for different bottles.
3.Parameters
Items | Full Auto Linear Hot Melt Glue Labeling Machine |
Model | RRJ024P |
Power supply | 380V/480V±10% |
Total power | 8KW |
Labeling type | Wrapping around, labels in roll |
Bottles | RoundD40-100mm,Height80-350mm |
Label sizes | Length 125-325mm, height 20-190mm |
Glue coating | Two ends of the labels, 10mm |
Labeling precision | ±0.5~1mm |
Capacity | 3000~12000BPH(normal500ML) |
Glue consumption | 30~40Thousands bottles need about 1kg(labels height50mm) |
Compressed air | MIN5.0bar MAX8.0bar |
Air consumption | 0.2M³/min |
Total weight | 2000kg |
Machine sizes | L=3050 W=1718 H=2080 mm |
