1. Brief Introduction

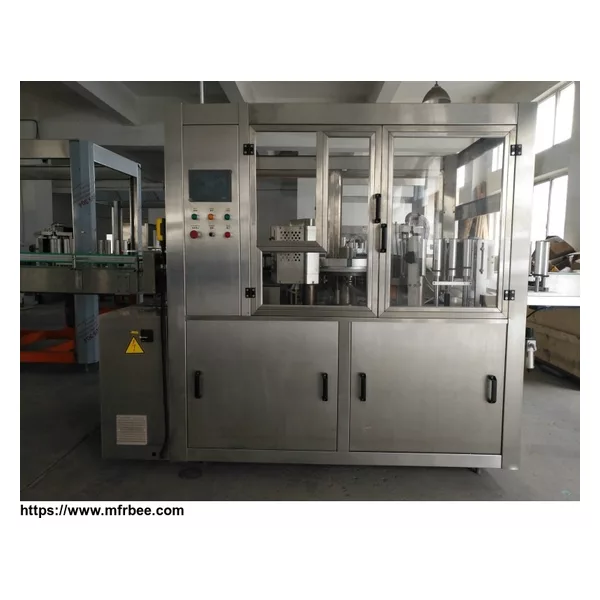

Hot melt glue labeling machine is also called OPP/BOPP labeling machine. RRJ012P is our 3^rdgeneration inline hot glue labeler, with 4 labeling positions, the machine can work at the speed 3000~12000 bottles per hour (500ml). It is widely used for around shape and 0.1~2 liters bottles for juice, soda/mineral water, carbonated drink etc.

This machine can cut OPP、BOPP、plastic and paper labels to meet different requirements.

2. Advantage of RRJ012P hot melt glue labeling machine

(1) High labeling precision 0.5~1mm.

(2) Steady and constant labeling.

(3) Reliable and Simplicity gluing system, safety and good performance.

(4) Reliable and steady labels cutting system, no need to adjust the cutter again and again.

(5)The cutter is available for OPP、BOPP、plastic and paper labels,

(6) Each piece of labels cost much lower than sleeves labels and sticker labels.

(7) Good look of labeling, and higher class

(8) Simplicity design, good appearance.

3.Parameters

Items	Full Auto Linear Hot Melt Glue Labeling Machine
Model	RRJ012P
Power supply	380V±10％
Total power	6KW
Labeling type	Wrapping around, labels in roll
Bottles	Around,diameter 45-100mm,Height80-350mm
Label sizes	Length 135-300mm, height 20-150mm
Glue coating	Two ends of the labels, 10mm
Labeling precision	±0.5~1mm
Capacity	3000~12000BPH（normal500ML）
Glue consumption	30~40Thousands bottles need about 1kg（labels height50mm）
Compressed air	MIN5.0bar MAX8.0bar
Air consumption	0.2M³/min
Total weight	1500kg
Machine sizes	L=2450 W=1570 H=1800 mm
