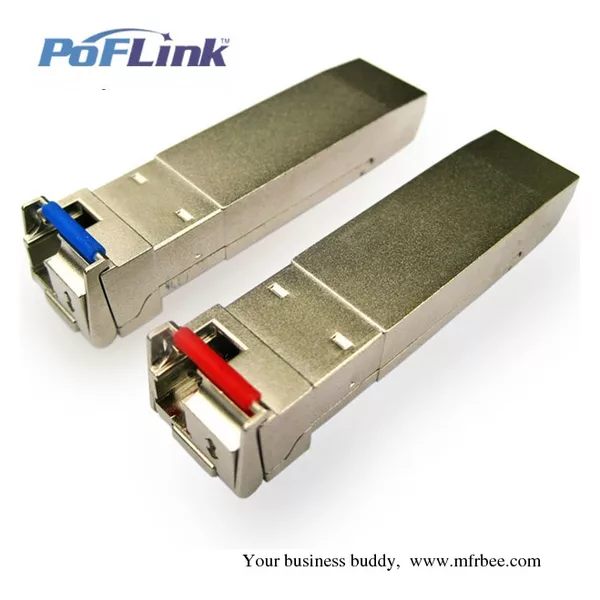

10G Bi-di SFP Plus Optical Transceiver Module
Product Quick Detail
- Packaging
- 10pcs/box
- Delivery
- 3 Days
Specifications
POFLink's BIDI SFP+ transceivers are designed for bi-directional 10GbE optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
POFLink offers 10G WDM SFP+ transceivers which reach distances from 10KM up to 80KM
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:European Union,Asia,Americas
- Founded Year:2010
- Address:4/F Langfeng Bldg. Kefa Rd., Hi-Tech Industrial Park, Nanshan Dist.
- Contact:leigh zeng
