Gabion Box

Usage: Gabion Box are fabricated from heavy hexagonal mesh or welded mesh, used in control and guide of water or flood, flood bank or guiding bank, preventing of rock breaking, water and soil protection, bridge protection, strengthening structure of soil, protection engineering of seaside area, seaport engineering, isolation walls, protection of road, etc.
Material: Hot dipped galvanized iron wire, PVC or Zinc-Aluminium alloy coated iron wire, ETC.
Features: Flexible,durable,permeable,strong,economical and ETC.
Weaving method: Fabricated by heavy type hexagonal mesh or welded

Brief Introduction of Gabion Box:
Gabions (from Italian gabbione meaning “big cage”; from Italian gabbia and Latin caves meaning “cage”) are hexagonal mesh or welded mesh gabions, containers or baskets filled with rock to prevent soil erosion and to retaining wall/contain soil particles. The structure made by the Gabions reduce water velocities and re-capture river bed sediment in streams.
Gabion basket retaining wall can be built with speed and economy in all circumstances and are particularly suitable for landslide control in mountainous countries and in areas with persistently bad ground conditions. Where ground is liable to subside, the capacity of galvanized welded gabion box to deform makes them preferable to a concrete wall which would crack and collapse. In addition to the distinct structural advantages over concrete and other no-porous gravity way structures, the potential to vegetate a standard steel gabion box or wire faced wall offers unique landscaping potential as well.

Gabions can be used in many ways, including: retain unstable slopes; provide erosion control to rivers channels and shorelines; create acoustic barriers; dressed architectural buildings and many other applications that require a permeable, flexible, durable and very cost effective structure.

Types of Galvanized Gabion Box:
The Galvanized Gabion Box can either be welded or hexagonal mesh, galvanized or plastic coated, depending on application. Tengyuan possesses nationally advanced heavy hexagonal and welded mesh machines and experienced workers, Various specifications of products can be made at the request of the customers. Standard Gabion box are assembled by the following two hexagonal mesh or welded mesh of heavy type.

1. Hexagonal Mesh Gabions
Double Twisted Hexagonal Mesh Gabion are filled with stones at the project site to form flexible, permeable, monolithic structures for gabion basket retaining wall, slope stabilization, channel lining, rockfall protection and many other applications, which have been used world wide for over 100 years.
Made with high quality low-carbon steel wire is usually galvanized. And the galvanizing layer thickness can be made according to the customer request. Max. galvanizing content can be 300g/ M2. The steel wire also can be PVC coated to provide additional protection for use in polluted or aggressive environments: in salt, fresh water, acid soil or wherever the risk of corrosion is present.

The Gabion structure can be divided into cells by diaphragms positioned at approximately 3 ft (0.9m) distance every each. To reinforce the structure, the edge wire of all mesh panel can be weaved with a greater diameter.

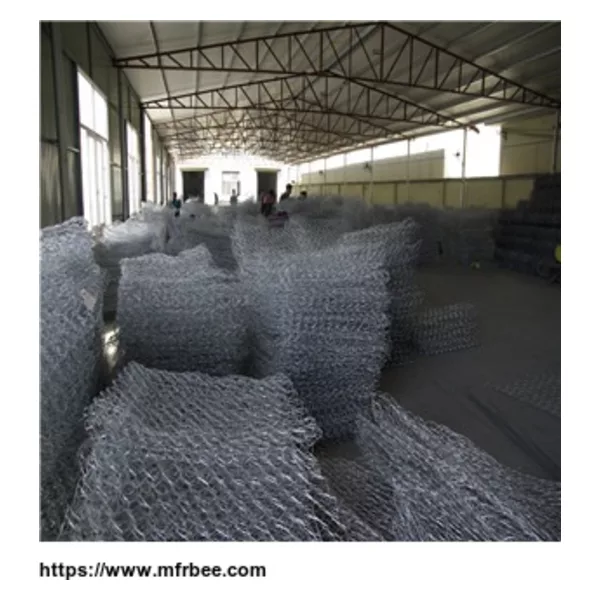

With the strict production process and quality control system, Tengyuan’s Galvanized Hexagonal Gabions enjoy a good reputation in the world wide market. Now we are pleasure to share Tengyuan’s Gabion production process with you:

2. Welded Mesh Gabions
Welded Mesh Gabions are manufactured from high quality cold drawn steel wire, which is then electrically welded together and Hot Dip Galvanized or Alu-Zinc coated , the welding mesh can be coated with PVC to safeguard against corrosion and other weathering effects, especially when the standard gabion box are to be used in salty and highly polluted environments, ensuring a longer life. Lacing wire shall be provided separately for site assembly. Lacing Spirals, Alu-Zinc and stainless steel C rings are also available at extra cost if required.

Welded Mesh Gabions are used in many ways including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls.

Unlike Hexagonal Mesh Gabions, Welded Mesh Gabions offer strong strength, which can hold their shape better – they don’t bulge out when being filled. They are also easy to install, which means more work, less labor and higher productivity.
Tengyuan’s Welded Mesh Gabions are worth the trust from you. We control the service quality from the beginning of the raw material choosing to the end of the installation.

Below is our general production process:
1, Examination of material;2,Wire Alignment ;3, Machine Welding;4, PVC Coating;5, Wire Spiral Making;6, Assembling;7, Finished welded gabion basket;8, Finished welded gabion basket;9, Installation.

Standard Welded Mesh Gabions specifications fall in grades as follows:

Welded Mesh Gabions
Specification (m)	partitions	Capacity (m3)
0.5 x 0.5 x 0.5	0	0.125
1 x 0.5 x 0.5	0	0.25
1 x 1 x 0.5	0	0.5
1 x 1 x 1	0	1
1.5 x 0.5 x 0.5	0	0.325
1.5 x 1 x 0.5	0	0.75
1.5 x 1 x 1	0	1.5
2 x 0.5 x 0.5	1	0.5
2 x 1 x 0.5	1	1
2 x 1 x 1	1	2
Special size according to customer’s requirement

The Advantages of Gabion Box:
Gabion Box have the following positive advantages:
1, Cost effective & environmentally friendly alternative to concrete system.
2, The Gabion structure blends easily and harmoniously with natural surroundings.
3, Simple & speedy installation , using natural or quarried stones obtained locally.
4, Ability to deform without cracking allowing the structure to withstand any unpredictable movement.
5, Higher resistance to natural forces due to better tensile strength.
6, Permeable: A Gabion structure allows water to pass through, water pressure cannot build up behind it and the structure is continuously.
7, Easy to transport: It can be folded together for transport and further installation.
8, Majority of manpower need not to be skilled & speed at which the work is carried out is unparalleled in civil engineering, besides making it cost effective.
9, Easy of repair to any damaged cages, with minimal expense.
10, Applications are as Channels, Rock fall, Roadside and Culverts protection and many more purposes.

Voice from Tengyuan
Tengyuan have more than 18 years of experience in the design and supply of Gabion products, installations and solutions of the engineering. The services we can offer referring to the Gabions are as follows:

1, Gabion structure design and Gabion production.
2, Price Estimates.
3, Site advice and installation assistance.
4, Technical presentations and knowhow.
5, Practical on site Gabion training.
6, Experienced installations.

Please contact us if you need any of help in the field of Gabions, Tengyuan will offer you up-to-date information in this gabion field, present a simple and effective way and offer you competitive price, enhancing your gabions purchase and design experience.
