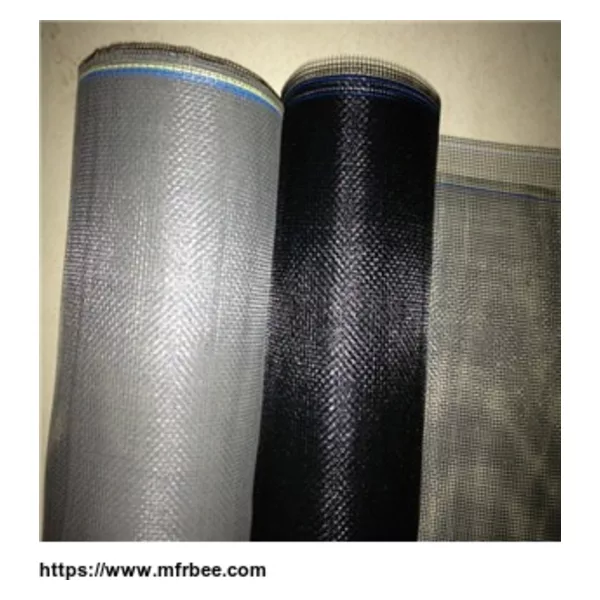

Window Screen Series
Product sourcing details
Supplier: Hebei Tengyuan Wire Mesh Products Co.,Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Usage: With light weight, good flexibility and easy cleaning, window screen netting is mainly used in hotels, public buildings, civil residences against bugs,
insects, etc.
Material: Mild steel wire, stainless steel wire, Al-mg alloy wire, galvanized iron wire, PVC wire, aluminum wire,
chemical fiber.
| Specification List of Window Screen Netting | |||||||||
| Variety | Specification | Technical Notes | |||||||
| Mesh/Inch | Wire Gauge | Roll Size | |||||||
| Gal.Iron Wire Netting | 10 x 10 | BWG31 BWG32 BWG33 BWG34 |
| Process: Electric galvanized after weaving Color: White or blue white | |||||
| 14 x 14 | |||||||||
| 16 x 16 | |||||||||
| 18 x 18 | |||||||||
| 18 x 14 | |||||||||
| 22 x 22 | |||||||||
| 24 x 24 | |||||||||
| Enamelled Iron Wire Netting | Same as above | Green or dark green | |||||||
| Aluminum Coated Iron Wire Netting | Same as above | Silver | |||||||
| Aluminum Wire Netting | Same as above | Material: Al-mg alloy or pure aluminum Painted aluminum wire netting epoxy resin paint | |||||||
| Fiberglass Wire Netting | 12 x 12 | BWG31 BWG32 | 3\'x100\' 4\'x100\' 1x25M 1.2x25M | Available in different colors | |||||
| 14 x 14 | |||||||||
| 16 x 16 | |||||||||
| 16 x 14 | |||||||||
| PVC Wire Netting | 12x 12 | As above | Twisted weaving:12*14*16mesh; Plain weaving:18*22*24mesh; Colors available:white,blue,green,etc. | ||||||
| 14 x 14 | |||||||||
| 16 x 16 | |||||||||
| 18 x 18 | |||||||||
| 18 x 14 | |||||||||
| 20 x 20 | |||||||||
| Stainless Steel Wire Netting | 14 x 14 SWG38 16 x 16 SWG37 18 x 18 SWG36 18 x 14 SWG35 20 x 20 SWG34 | 3\'x100\' 4\'x100\' 1x25M 1.2x25M | Materials: Stainless steel 304*316*316L | ||||||
| PVC Coated Wire Netting | 12x 12 | BWG31 BWG32 | As above | Different colors available. Used in petroluem, pipes wrapping. |
- Company: Hebei Tengyuan Wire Mesh Products Co.,Ltd
- Country: China (Mainland)
- Business Type: Manufacturer
- Market: Africa,Americas,Asia,Emerging Markets
- Founded Year: 1996
- Address: Room2919,,Wanda Plaza,Apartment 1,South Jianhua Street#136
- Contact: GuoMark
