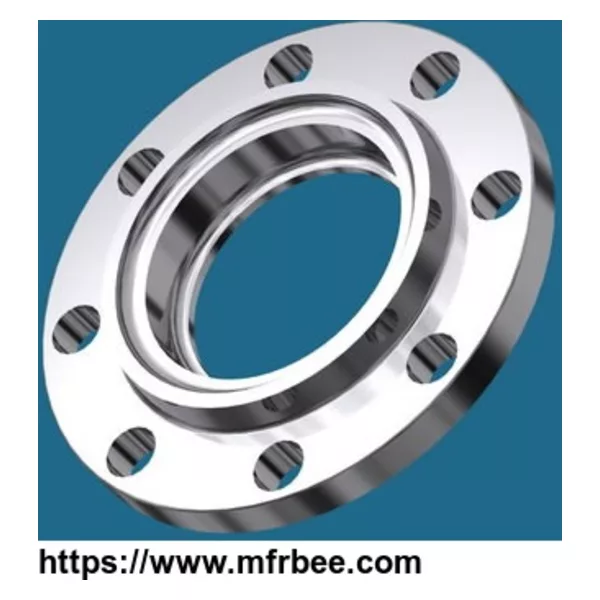

Socket Welding Flanges

Minimum Order: 10

Place Of Origin: China

Packaging: in wooden boxes

Delivery: 15 Days

Socket Welding Flanges, SW Flange, Pipe flanges

The socket welding flange is similar to a slip-on flange except it has a bore and a counterbore dimension. The counterbore is slightly larger than the O.D. of the matching pipe, allowing the pipe to be inserted into the flange similar to a slip-on flange. The diamter of the smaller bore is the same as the I.D. of the matchine pipe A restriction is built into the bottom of the bore which sets as a shoulder for the pipe to rest on. This is eliminates any restriction in flow when using a socket welding flange.

Standards, Dimensions & Weight

ASME/ANSI B16.5 Class 150 SW
ASME/ANSI B16.5 Class 300 SW
ASME/ANSI B16.5 Class 600 SW
ASME/ANSI B16.5 Class 1500 SW

Specifications:

Size: 1/2” to 60”, DN 12mm to DN 1500mm view...
Pressure class: Class 150 to Class 2,500, PN 2.5 to PN 250
Facing: RF / RTJ

Cabon steel: A105, A350 LF2

Stainless steel: A182 F304/F304L/F316/F316L/F321

Alloy steel: F11, F12

Packing: plywood case and plywood pallet

Usage:

Flanges are integral parts of many engineering and plumbing projects. In many applications, engineers need to find a way to close off a chamber or cylinder in a very secure fashion, usually because the substance inside must differ from the substance outside in composition or pressure.

They do this by fastening two pieces of metal or other material together with a circle of bolts on a lip. This “lip” is a flange.

Plumbing

You can connect two sections of metal piping by soldering or welding them together, but pipes connected in this way are very susceptible to bursting at high pressures. A way of connecting two sections of pipe more securely is by having flanged ends that you can connect with bolts. This way, even if gases or liquids build up to high pressures inside the pipe, it will often hold with no problem.

Mechanics

In order to connect two sections of a large, enclosed area, it is often best to used flanges and bolts. An example of this is the connection between the engine and the transmission in an automobile. In this case, both the engine and the transmission contain a number of moving parts that can easily get damaged if they get dust or other small objects inside of them. By connecting the outer casings of the engine and transmission in this way, engineers protect the inner workings of both.

Electronics

Flanges have a specific purpose in cameras and other electronic devices. Though flanges in such items do not usually have to sustain high pressures, they do have to hold tight so they can keep out harmful particles. These flanges are usually found connecting two different materials, such as the glass of a lens and the rest of the body of the camera.

We have a team of experienced professionals with years of experience in manufacturing.

Country: China (Mainland)
Business Type: Manufacturer
Market:Americas,Asia,Europe,European Union
Founded Year:20000
Address:No. 273, Siping Road, Shanghai
Contact:sum xu
