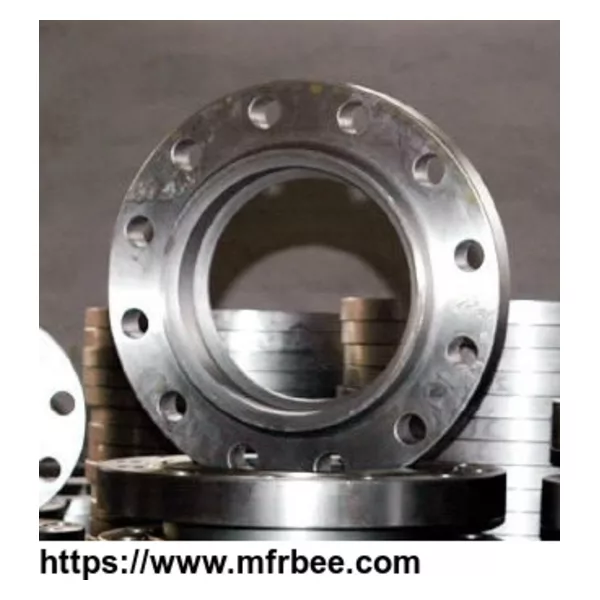

Forged Flange, Forged steel flanges

Minimum Order: 1
Place Of Origin: China

Packaging: in wooden boxes

Delivery: 15 Days

Forged Flange, Forged steel flanges, Forged flanges, Forged steel flange

Forged flange is defined as a plate type device, normally round, that is attached to the end of a pipe, fitting, valve or other object to facilitate the assembly and disassembly of a piping system.

Forged steel flanges made of carbon steel or stainless steel, the materials conform to the JIS, ASTM A182,A105, DIN17100 ST-2 and BS standard. Dimension to be in accordance with JIS ANSI DIN BS standard accordingly.

The flanges are suitable for connection of steel pipes conveying mediums such as steam, oil, air and water. They are widely used in Chemical industry and Shipbuilding . And the flanges are suitable for welding.The flanges mainly include Welding Neck, Blind, Slip-on, Lap-Joint, Socket,Reducing and Plate type.

Size available:1/2"--72"(DN15-DN1800).

We can supply according to the customer's drawings or samples stating the materials used.

Forged flanges are manufactured in all the different materials to match the material of the pipe and fittings to which they are being attached. While some flanges are made of Cast Iron, the vast majority of flanges are forged carbon steel.

Forged steel flanges are made in seven primary ratings:

ANSI B 16.5 Class 150 lb
ANSI B 16.5 Class 400 lb
ANSI B 16.5 Class 900 lb
ANSI B 16.5 Class 2500 lb
ANSI B 16.5 Class 300 lb
ANSI B 16.5 Class 600 lb
ANSI B 16.5 Class 1500 lb

Usage:

Flanges are integral parts of many engineering and plumbing projects. In many applications, engineers need to find a way to close off a chamber or cylinder in a very secure fashion, usually because the substance inside must differ from the substance outside in composition or pressure.

They do this by fastening two pieces of metal or other material together with a circle of bolts on a lip. This “lip” is a flange.

Plumbing

You can connect two sections of metal piping by soldering or welding them together, but pipes connected in this way are very susceptible to bursting at high pressures. A way of connecting two sections of pipe more securely is by having flanged ends that you can connect with bolts. This way, even if gases or liquids build up to high pressures inside the pipe, it will often hold with no problem.

Mechanics

In order to connect two sections of a large, enclosed area, it is often best to used flanges and bolts. An example of this is the connection between the engine and the transmission in an automobile. In this case, both the engine and the transmission contain a number of moving parts that can easily get damaged if they get dust or other small objects inside of them. By connecting the outer casings of the engine and transmission in this way, engineers protect the inner workings of both.

Electronics

Flanges have a specific purpose in cameras and other electronic devices. Though flanges in such items do not usually have to sustain high pressures, they do have to hold tight so they can keep out harmful particles. These flanges are usually found connecting two different materials, such as the glass of a lens and the rest of the body of the camera.

We have a team of experienced professionals with years of experience in manufacturing.

Country: China (Mainland)
Business Type: Manufacturer
Market:Americas,Asia,Europe,European Union
Founded Year:20000
Address:No. 273, Siping Road, Shanghai
Contact:sum xu
