Cable Top Ties/Side Ties
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- Carton or according to your need
- Delivery
- 20 Days
Specifications
Function

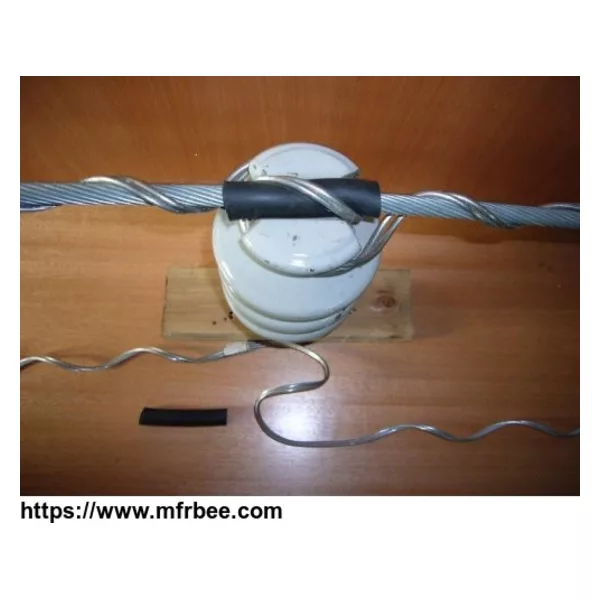

Distribution ties are designed for securing conductors in the top groove of rigid insulators vertically mounted.
This specific distribution tie provides perfect resistance to mechanical strain under all types of motion including aeolian vibration, galloping and sway.
Distribution tie design takes into account a tie pad to protect the bare conductor from abrasion at the conductor insulator interface.
Tie pads are not required with jacketed conductors.
This product is manufactured with the same grade material| as the conductor to which it is applied.
Mechanical strength
Distribution ties have a slip load exceeding 3.5kN in unbalanced load conditions. This strength is usually sufficient to contain a broken conductor to a single span.
Note
The lay direction of distribution ties must be the same as that of the outer stranding of the conductor to which it is applied.
Top ties
-For insulated conductors
Selection chart
| Model (naked wire) | Model no. (insulation wire) | Wire diameter | Product Parameter | Suitable International wire | ||||
| Min. | Max. | Color | Num. Of one set | LJ | Comment insulation (10KV) | thin-insulation (10KV) | ||
| BDT6100 | BDT6200 | 4.83 | 5.46 | Blue | 2 | 16 | 10 | |
| BDT6101 | BDT6201 | 5.74 | 6.2 | Brown | 2 | 16 | ||
| BDT6102 | BDT6202 | 6.21 | 7.04 | Orange | 2 | 25 | ||
| BDT6103 | BDT6203 | 7.05 | 8 | Purple | 2 | 35 | ||
| BDT6104 | BDT6204 | 8.01 | 9.07 | Red | 2 | 50 | ||
| BDT6105 | BDT6205 | 9.08 | 10.29 | Yellow | 2 | |||
| BDT6106 | BDT6206 | 10.3 | 11.66 | Blue | 2 | 70 | ||
| BDT6107 | BDT6207 | 11.67 | 13.21 | Orange | 2 | 95 | 10、16 | |
| BDT6108 | BDT6208 | 13.22 | 14.94 | Red | 2 | 120 | 25 | |
| BDT6109 | BDT6209 | 14.95 | 16.89 | Purple | 2 | 150 | 25、35 | 35、50 |
| BDT6110 | BDT6210 | 16.9 | 19.18 | Brown | 2 | 185、210 | 50 | 70 |
| BDT6111 | BDT6211 | 19.2 | 21.79 | Red | 2 | 240 | 70、95 | 95、120 |
| BDT6112 | BDT6212 | 21.82 | 24.59 | Blue | 2 | 300 | 120、150 | 150、185 |
| BDT6113 | BDT6213 | 24.61 | 27.84 | Green | 2 | 400 | 185 | 240 |
| Note：Suit for dextro naked wire and insulation wire. |
Material
Helical rods: Aluminum alloy
Application
BDT… are used to insulated cables.
