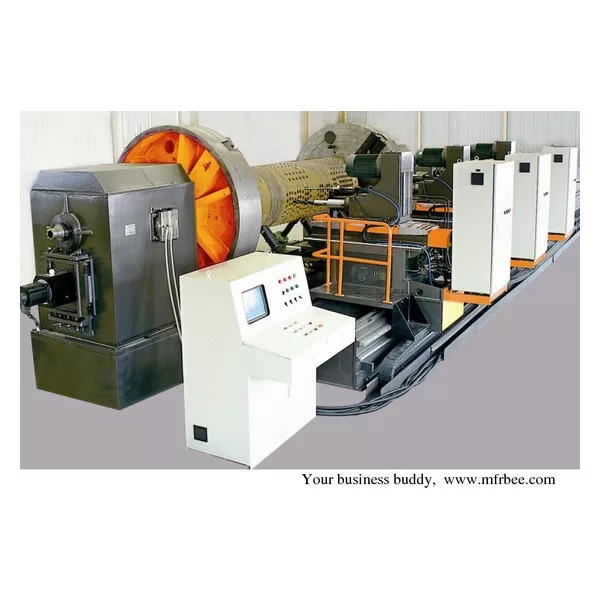

CNC drilling machine for boiler drum
Product Quick Detail
- Place Of Origin
- Jinan, China
- Packaging
- seaworthy package, load in 20' or 40' container
- Delivery
- 120 Days
Specifications
CNC drilling machine for boiler drum
Horizontal drilling drum major for three spindle CNC drilling drum and similar parts of the past, such artifacts are artificial crossed drilled in the radial drilling machine, accuracy, low productivity, high labor intensity
Technical parameter:
Model GT1212/3
Boiler drum dia. (mm) Φ800-Φ1200mm
Boiler drum length(mm) 2-12m
The maximum thickness of the cylinder wall (mm) 50mm
Drilling diameter (min.) Φ20mm
Drilling diameter (max.) Φ63mm
Hole distance precision Close hole ±0.5mm Far hole ±1.0mm
you can try drilling machine for drilling to get through more products
