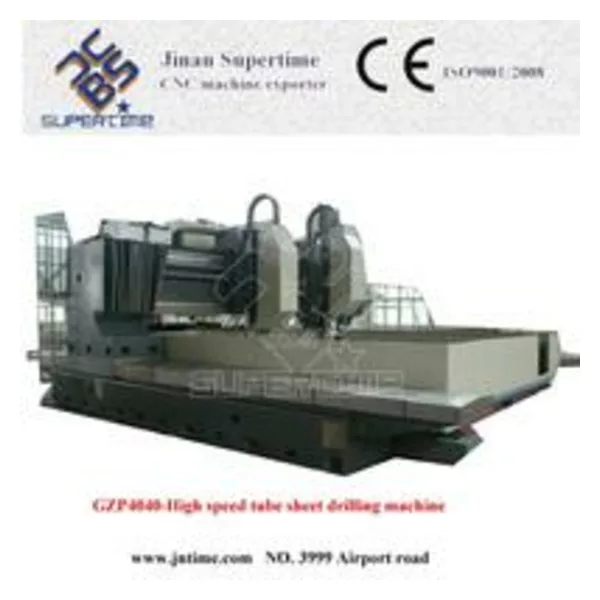

CNC tube sheet drilling Machine

Place Of Origin
Jinan, China
Packaging
seaworthy package, load in 20' or 40' container
Delivery
120 Days
CNC tube sheet drilling Machine

Parameter

Name of parameter Item Value

Max. distance between hole centers Length × width 4000×4000mm

Max. thickness of workpiece 250mm

Worktable Width of T-slot 28mm

Vertical ram type drilling head Quantity 2

Morse Taper BT50

Max .drilling diameter. (Normal carbon steel) φ40mm(Carbide drill head) φ50mm(High-speed steel twist drilling head

Drill depth/drill diameter ≤5(Carbide drill head )

Rotation speed of spindle 30—4500r/min

Max. tapping diameter M39

Motor power of spindle 2×22/33kW

Max. torque of spindle (n≤ 250r/min) 840Nm

Distance between bottom surface of spindle and worktable 280-780mm

Longitudinal movement of gantry (X axis) Max. stroke 4000mm

Movement speed of X axis 0-8m/min

Servo motor power of X axis /torque 2×3kW/28.4Nm

you can try drilling machine    for drilling    to get through more products

  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Asia,Africa,Europe,Middle East
  • Founded Year:2005
  • Address:No. 3999 airport road
  • Contact:Kate Guo
more images of CNC tube sheet drilling Machine
