Positively-driven Flat Wire Belting

Place Of Origin
100
FOB Price
USD $100.00 / Piece
Minimum Order
1
Packaging
100
Delivery
15 Days
Flat wire belting, also named as honeycomb belting, is a well known traditional conveyor belt for most straight-running conveying applications. This hone comb belt features very large open area, high strength-to-weight ratio and flat carrying surface. All of these outstanding performances make it the most popular choice for baking, cooling, heating and packaging.


Stainless steel flat wire conveyor belting for snack food conveying systems.
SDFWB-01: Stainless steel flat wire belts.
Constructed from formed flat strips connected by cross rods, flat wire belts have a wide variety of configurations to suit different requirements. For standard duty flat wire belting, 1" × 1" & 1/2" × 1" are frequently used, and other special specifications are available on request.


Flat wire conveyor belting has two edge styles - welded and clinched. Clinched edge is the first choice for standard duty flat wire belts, which can prevent mesh shrinkage on the rods. however, button welded edges are available.


Flat wire belting are manufactured by three common materials: low carbon galvanized steel (such as C1015), high carbon steel (such as C1050) and stainless steel T-304 or T-316. Click here for more information about the materials.


Product description:


Item: Standard duty flat wire belts.
Cross rod: 11 & 12 gauge.
Flat strip: 3/8" wide × .046" thick, round edge.
Edge style: clinched edge or welded edge.
Material available for flat wire belting:
Low carbon galvanized steel.
C1050 high carbon steel.
T-304 or T-316 stainless steel.
Features & Benefits:


Straight-running belt.
High strength-to-weight ratio.
Positive-driving belt.
Welded button edge or clinched edge.
flat carrying surface.
Easy to clean and to install.
Wide range of aperture configurations.
Strong edge reduces snagging or catching on conveyor protrusions.
Very large open area.
Typical Applications:


Cooking.
Heating.
Sieving.
Drying.
Sorting.
Ovens.
Washing.
De-watering.
Drainage.
Breading.
Food baking, cooling and freezing.
Chemical industry.
Annealing.
Cladding.
Edge styles of flat wire belting:


Standard honeycomb belting with clinched edge.
SDFWB-02: Clinched edge standard flat wire belts.Carbon steel standard duty flat wire belting with welded edge.
SDFWB-03: Welded edge standard duty flat wire conveyor belt.
Specifications for standard duty flat wire belts
Item No. Mesh Flat strip Cross rod Edge Finish Width
Min. Max.
inch inch gauge inch inch
SFW01 1×1 3/8 × 0.046 11 & 12 Clinched edge 4.5 240
SFW02 1/2×1 3/8 × 0.046 11 & 12 Clinched edge 4.125 240
SFW03 1/2×1 Modified 3/8 × 0.046 11 & 12 Clinched edge 4.125 240
SFW04 3/4×1 3/8 × 0.046 11 & 12 Clinched edge 4.5 240
SFW05 1×1 3/8 × 0.046 11 & 12 Welded edge 3.0 240
SFW06 1/2×1 3/8 × 0.046 11 & 12 Welded edge 3.25 240
SFW07 1/2×1 Modified 3/8 × 0.046 11 & 12 Welded edge 3.25 240
NOTE: Please contact us if you don't find the specification for your application.
Rolls of flat wire belts for easy package.

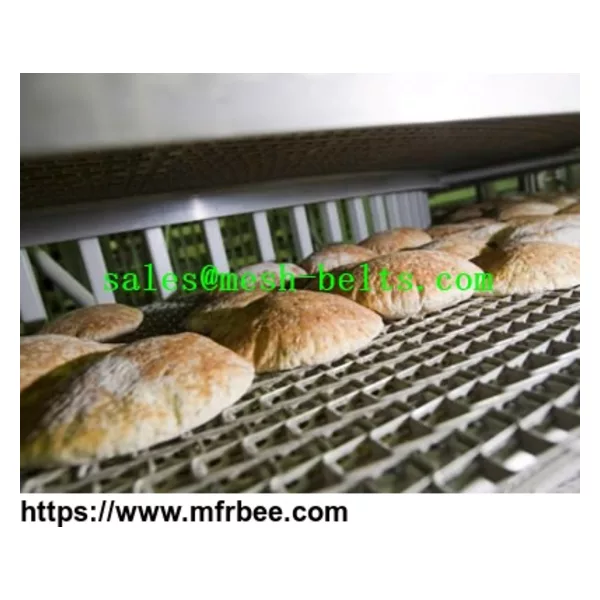

SDFWB-04: Flat wire belt packed in rolls.Flat wire belting used in food processing.
SDFWB-05: Flat wire belting used for snack food baking.
U-link conveyor belt designed for more height.
SDFWB-06: U-link conveyor belting is a new version of flat wire conveyor belt. It is composed of single U-shaped plates and triple rods per U-shaped plates. This belting is ideal for heavy loading application.
