Ladder Conveyor Belting

FOB Price: USD $100.00 / Piece
Minimum Order: 1

Place Of Origin: 100

Packaging: 100

Delivery: 15 Days

Ladder conveyor belt, also called as rod conveyor belt, is popularly used in baking industry for its flat surface, easy assemble, minimum maintenance and thorough cleaning. Light weight ladder belting is an economical and cost-effective option for many different conveyors used in different industries. Positively driven by sprocket, ladder belting will be used in straight-running or radial applications ( 90 and 180 degrees).

Straight and radial ladder belt is stainless steel T-304 and mild strength carbon steel. T-304 is strongly recommended for all applications especially in food industries.

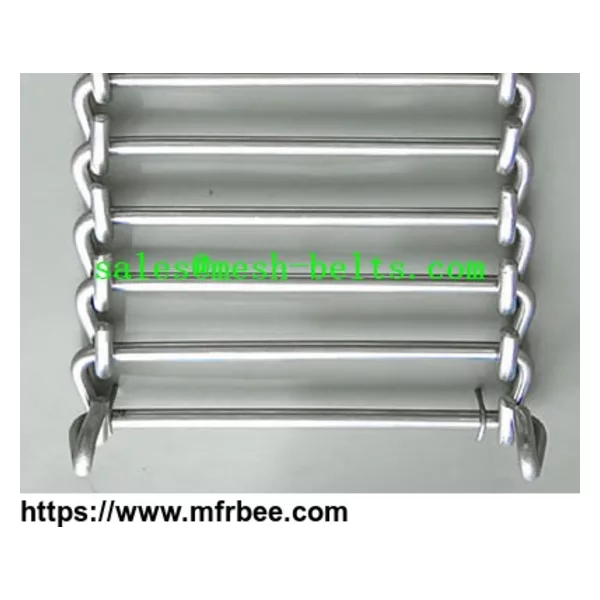

Straight running ladder conveyor belting.

LCB-01: Ladder conveyor belting.Ladder conveyor belting transferring eggs safely.

LCB-02: Egg ladder conveyor belt.

Product description:

Item: Ladder conveyor belt.

Style: straight-running and radial.

Material availability:

Stainless steel T-304.

Mild-tensile carbon steel.

Specification: see the table below.

Features & benefits:

Positively sprocket driven belt.

Straight-running or radial applications.

Flat carrying surface.

High tensile strength rods.

Easy to assemble and disassemble.

Popularly used in baking industry.

Thorough cleaning.

Minimum maintenance.

Typical applications:

Cooking.

Heating.

Packaging.

Drainage.

Cooling.

Freezing.

Washing.

Elevating.

Straight running ladder belt diagram.

LCB-03: Straight running ladder belt diagram.

Radial ladder belting diagram.

LCB-04: Radial ladder belting diagram.

Specifications for straight-running ladder belt

Item No. Pitch Rod diameter Maximum width

mm mm mm

LBS01 12.7 3.66 762

LBS02 15.87 4.47 914

LBS03 19.05 4.88 914

LBS04 25.4 4.88 914

Specifications for radial ladder belt

Item No. Pitch Rod diameter Inside Radius Available width

mm mm mm mm

LBR01 12.7 3.66 598.5 229/305/381/457/762

LBR02 15.87 4.47 762 305/381/457/610/762

Country: China (Mainland)
Business Type: Manufacturer
Market:Middle East
Founded Year:2000
Address:East industrial Zone, Anping, Hebei, China 053600
Contact:Robert Zhao
