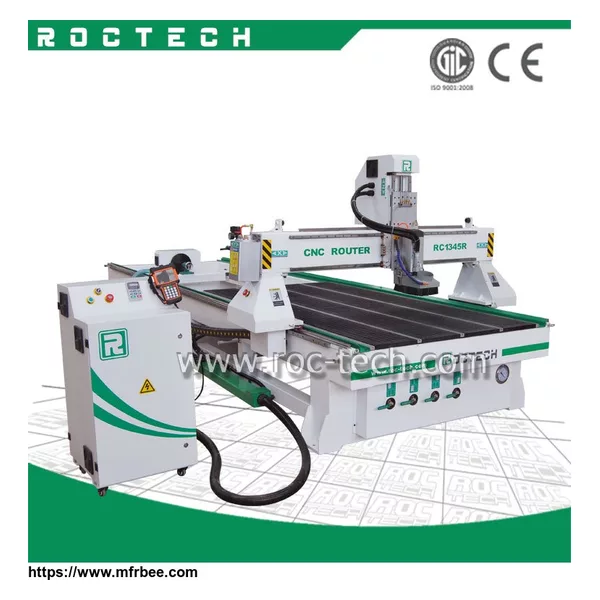

Parameter
1.X,Y,Z Working Area:1300mmX4500mmX300mm
2.Rotary System:500mm diameter *2000mm length
3.Table size:2500mm*1300mm
3.X,Y,Z Traveling Positioning Accuracy:±0.03/300mm
4.X,Y,Z Repositioning Accuracy:±0.03mm
5.Table Surface:T-slot table and rotary
6.Frame:Welded Structure
7.X, Y Structure:Rack and Pinion Drive, Hiwin Rail Linear Bearings
8.Z Structure:Hiwin Rail Linear Bearings and Ball Screw
9.Max. Power Consumption:(Without spindle) 4.2Kw
10.Max. Rapid Travel Rate:35000mm/min
11.Max. Working Speed:25000mm/min
12.Spindle Power:6KW
13.Spindle Speed:0-18000RPM
14.Drive Motors:118 stepper motor
15.Working Voltage:AC380V/50/60Hz,3PH (Option: 220V)
16.Command Language:G Code
17.Operating System:DSP A51
18.Computer Interface:USB
19.Flash Memory:128M(U Disk)
20.Collet:ER32
21.X,Y Resolution:<0.03mm
22.Software Compatibility:Type3/UcancameV9 Software (Option: Artcam software)
23.Running Environment Temperature:0-45 Centigrade
24.Packing Size:5400X2300X2000mm
25.N.W.1800KG,G.W.2100KG
26.Optional Parts:Air Cooling Spindle or Water Cooling Spindle/Syntec Control/System/Dust Collector/Vacuum Pump/Mist-cooling System/Delta /750W Panasonic Servo Motors
