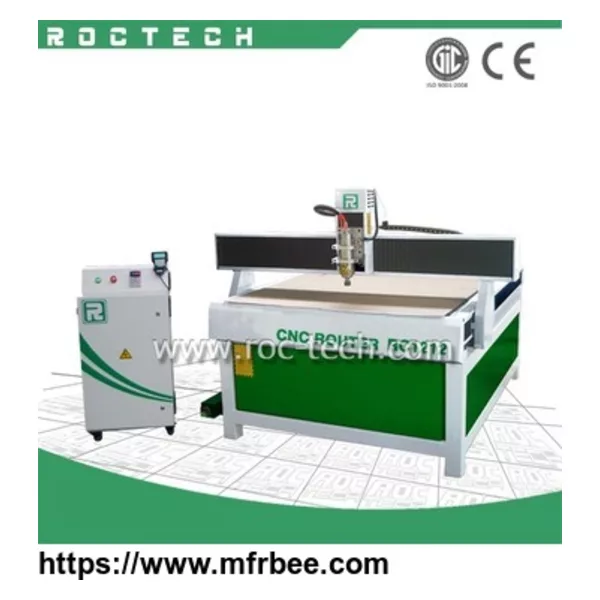

CNC Cutting Machine RC1212

FOB Price
USD $5,500.00 / Piece
Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
wooden box or as required
Delivery
20 Days

RC1212 Machine Wood/ Wood Design CNC Machine Price /MDF Wood Machine

Product Description

It is the best choice for small piece, Medial size woodworking, becaue of the humanity design, it is very good for advertising working.

We use accuracy LM linear (HIWIN) for all three axis, with options like water slot, mist spray system...etc.

With T-slot table, holding the materials with clamps, High precision, you can do many jobs for sign mading, wood artwork....

All meterials for Sign making, even for wood working, molding.

2.The parameters of RC1212 Machine Wood/ Wood Design CNC Machine Price /MDF Wood Machine

1.XYZ working area: 1200x1200x120mm

2.Table size: 1260X1420mm

3.XYZ travel positioning accuracy: ±0.01/300mm

4.XYZ repositioning positioning accury: ±0.01mm

5.Table surface: T-slot Extrusions

6.frame: Welded steel structure

7.X, Z Structure: Ball Screw

8.Y Structure: Hiwin Rail Linear Bearings and Ball Screw

9.Max power consumption: 0.8Kw

10.Max.Rapid Travel Rate: 10000mm/min

11.Max working speed: 6000mm/min

12.Spindle speed: 0-24000rpm

13.work mode: Stepper

14.Working voltage: AC380V (220V)

15.Command language: G code

16.Interface: USB

17.Operating system: DSP(option: NcStudio, Syntec…)

18.Inner memory:128M

18.X-Y resolution:0.003mm

20.Software environment:Type3, Ucan cam

21.Running environment: Temperature:0°C-45°C-

22.Paking size: 1710 x 1750 x 1650mm

23.Net weight: 260KG

24.Gross weight:370KG

Packaging & Shipping

1.The packing: Free-fumigation wooden cases or other customized packages

2.The shipping:LCL(less than container load) or FCL(full container load

Our Services

1). The machine is guaranteed for 12 months.

2). Technical support by phone, email or MSN around the clock.

3). Friendly English version manual and operation video CD disk.

FAQ

1. Training and Use?

We will supply friendly English operation manual and installation. Customer is warmly welcomed to visit our factory for free training. We can also send engineer to customer’s country to supply training.

2.Guarantee & After-sale Service?

We supply one year warranty under normal use and lifetime technical support.

3. Payment Terms?

T/T in advance.You can also arrange payment through Alibaba Trade Assurance.

4. Documents after shipment?

We will send original documents to you by DHL, including Packing List, Commercial Invoice, Sales Confirmation, Bill of Lading, and other certificates as required by customer.

5.Contact ways:

Email:cnc02 at roc-tech.com

Tel:0086 531 86083990

  • Country: China (Mainland)
  • Business Type:
  • Market:Middle East,Americas,Africa,European Union,Asia
  • Founded Year:2001AD
  • Address:#88 Damiao Industrial Park, Jinan, Shandong, P.R. China
  • Contact:Lance Liu
