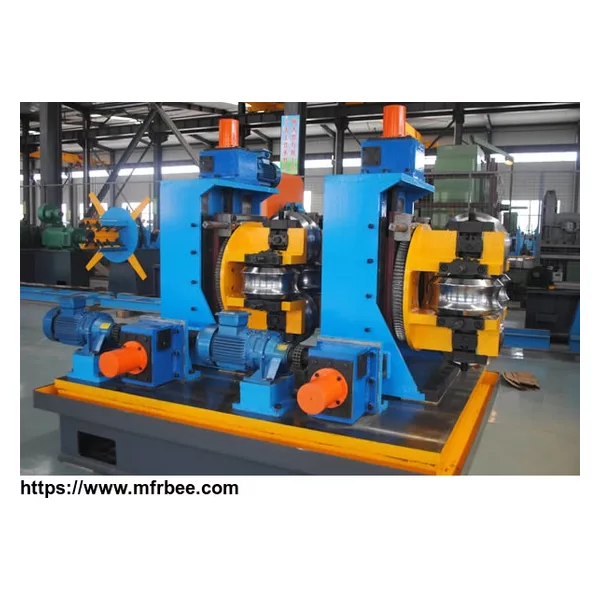

High Frequency Welded Tube Mill Line
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- Waterproof and seaworthy plywood case
- Delivery
- 60 Days
Specifications
Raw material (strip) →feeding→Cutting and Welding →Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → Packing → Storage
2. Adapt materials:
Hot rolled or cold rolled steel strip
Material: Low carbon steel and low alloy constructional steel
δs≤345Mpa δb≤610Mpa
3. Processing steel pipe size range:
(1) Processing range: Round pipe Φ89-Φ165mm.
Square&Rectangular pipe 60x60—130x130
(2) Thickness of Round pipe: 2.0-6.0mm
Thickness of Square&Rectangular pipe: 2.0-6.0mm
4. Installed capacity: 800KVA
5. Water consumption: 50m3/h
6. Solid-state high-frequency Welder: 400KW
7. Workshop Request: length, width and height 80-120m X 12m X 8m
8. Forming speed: 40-60m/min
- Country: Afghanistan
- Business Type:
- Market:
- Founded Year:
- Address:
- Contact:Amy Gu
