Stainless Steel Welded Pipe Mill Line

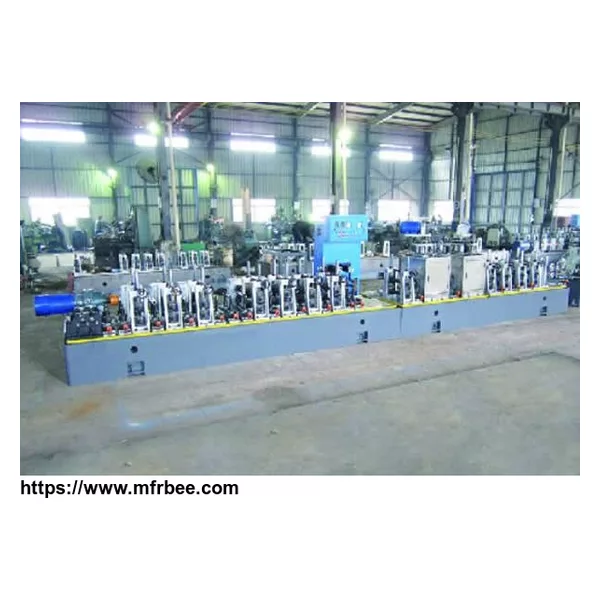

High-frequency galvanized stainless carbon steel pipe making machine







1. Dimension range of High-frequency galvanized stainless carbon steel pipe making machine

pipe welding mill machine Model	M45(Unit)	M50(Unit)	M60(Unit)
Diameter of Welded Tubes	Φ13-50.8mm	Φ15-63.5mm	Φ16-63mm
Wall Thickness of Welded Tube	0.8-2.0mm	0.8-2.5mm	1.0-3.0mm
Speed of Tube Welding	40-90m/min	40-80m/min	40-80m/min
Power of Major motor	90KW	110KW	132KW

2. Main parameter of High-frequency galvanized stainless carbon steel pipe making machine

1. Uncoiler	1set
2. Shearing and butt-welding machine	1set
3. Horizontal-type Accumulator	1set
4. Forming, welding, scraping and sizing unit	1set
5. Driving system	1set
6.Computer-controlled tracking cutting saw	1set
7. Finished pipe passing conveyor: (Run-out table)	1set
8. High-frequency electric	1set

3. Working flow of High-frequency galvanized stainless carbon steel pipe making machine
Raw material (steel coil) → uncoiling → shearing and butt-welding → material accumulating → non-power leveling →mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling →
sizing → roughly straightening → fixed length cutting → finished pipe → run-out table
