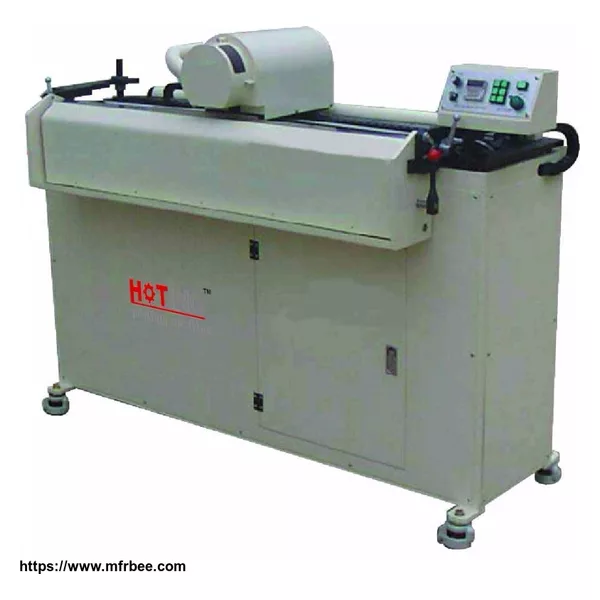

Application scope:
This series suitable for squeegee grinding.
Specification:
1.Manual and semi-automatic switch function, by ABBA linear guide design, ensure the grinding flatness.
2.Adopts eccentric clamping device, clamping device of crossing straight, can blow plastic deformation of the defect correction, ensure the grinding quality.
3.Adopts the green environmental protection design, with extra suction device, prevent cutting spray scraping gum during grinding process, ensure operators healthy body, maintain environmental
health.
4.The emery wheel is used for the grinding wheel, grinding high precision, long service life.
5.The grinding angle 0-45 degrees is adjustable.
6.Electrical control adopts PLC program control, stepless speed adjustable.
7.Can be grinding of different specifications of squeegee.
8.The main parts adopt imported famous brand products like MAGADYNE from Italy, FUJI,IKO MITSUBISHI from Japan and LG,AUTONICS from Korea.
Parameter:
Model | SSA-1000 | SSA-1500 | SSA-2500 |
Max grinding length | 1000mm | 1500mm | 2500mm |
Grinding wheel | Diamond | ||
Grinding speed | 5 ~ 50mm/sec | ||
Grinding quantity | 0.125mm/1cycle | ||
Grinding angle | 0° ~ 45°(Option) | ||
Power | 220V X 1p X 1.5kW | ||
Weight | Approx. 350kg | Approx. 450kg | Approx. 700kg |
Dimension(W X D X H) | 1530×550×1300 mm | 2030×550×1300 mm | 3200×550×1300 mm |
★ Special specification can be made for requirement. |
1. Max. grinding length: 2700 mm 2. Table size: 2750*180 mm 3. Grinding wheel size: φ200*φ100*φ32 mm, 1400 rev/ min 4. Wheel motor power: Y-4 , 4.4 KW 5. Infeeding motor power:Y-6 ,1.1 KW 6. Cooling pump motor power: 0.04 KW 7. Grinding wheel reciprocating speed: Vt=14-30 ...
