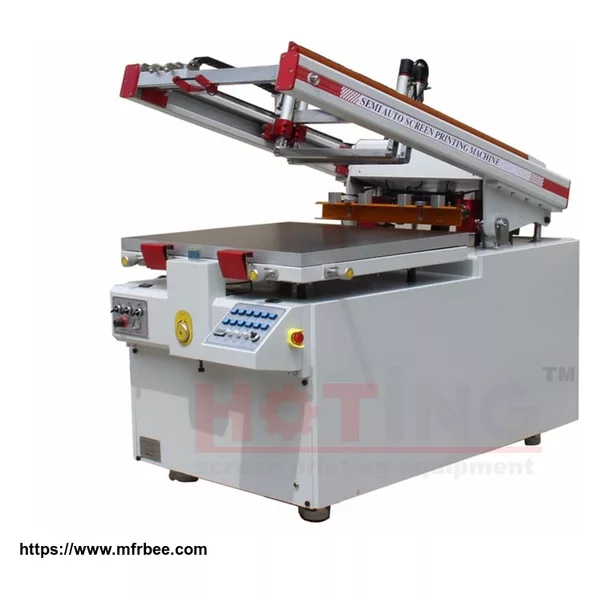

Semi automatic flatbed screen printer
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- 1pcs in wooden box
- Delivery
- 15 Days
Specifications
Application scope:
This series is applicable to PCB circuit boards, mobile phone panel, membrane switch, electronic cold plate, ceramic color paper, metal signs, packaging paper plane etc precision
printing.
Specification:
1. Screen fixed by pneumatic method, easy to operate
2. Evenness and ligh of aluminum honeycomb working table
3. Quality peel off device makes squeegee and height of screen lifting simultaneously
4. No trembling during up and down movement of the side frame by selecting the inverter control
5. Mitsubishi motor and all key parts from Japan, Germany, Italy, Korea, Taiwan to make sure quality
6. Combined integrated cylinder scraping blade improve stability
7. Emergency stop ensures operator's safety and reduces defective rate
Optional:
1.) Swing type scraper and ink blade
2.) Desktop blowing setting
3.) Touch screen control panel
4.) Automatic monitor control printing lift
5.) Light weight worktable
Parameter:
| Model | PSA-6050 | PSA-8060 | PSA-1280 |
| Max printing size | 600 X 500mm | 800 X 600mm | 1200 X 800mm |
| Printing table size | 750 X 710mm | 900 X 800mm | 1320 X 1000mm |
| Printing speed | Max.1100 cycle/h | Max.1000 cycle/h | Max.900 cycle/h |
| Maximum frame size (OD) | 900 X 900mm | 1100 X 1000mm | 1500 X 1300mm |
| Min frame size (OD) | 500 X 500mm | 600 X 600mm | 800 X 800mm |
| Printing pressure | 0 ~ 95kgf | 0 ~ 95kgf | 0 ~ 95kgf |
| Scraping speed | 100 ~ 800mm/sec | ||
| Scraping angle | 60° ~ 90° | ||
| Scraping Bias | 6° | ||
| Screen vibration | 0 - 25mm | ||
| Printing work height | 900(+/-50)mm | ||
| Material thickness | 0 ~ 50mm | ||
| Frame fixing | Cylinder Clamp | ||
| Air pressure | 6kgf/cm2 | ||
| Weight | Approx. 570kg | Approx. 610kg | Approx. 710kg |
| Power | 220V(380) X 3ph X 2kW | 220V(380) X 3ph X 2kW | 220V(380) X 3ph X 2kW |
| Dimension (W X D X H) | 800 X 1650 X 1380mm | 990 X 1700 X 1380mm | 1350 X 1900 X 1380mm |
| ★ Special specification can be made for customized requirement. |
