Application Scope:

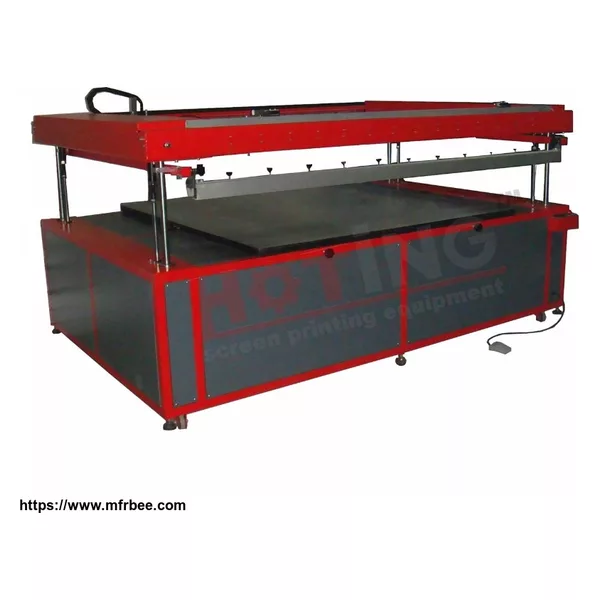

This screen printer series are suitable for indoor/outdoor poster, back-lit poster, signage, bus panel, fleet marking, plastic sheet, banner,acrylic sheet, wooden board,plywood boards, metallic plate,etc

Specification:

1. Manually fix screen, make the screen firmly, and not easy to move
2. Aluminium honeycomb sandwich panel average support workbench and lightweight and can ensure the smoothness of printing table
3. Cylinder control frame lifting, running steady and rapid to decrease the mechanical vibration effectively
4. Electric motor printing for steady and duarability
5. One-piece cylinder scraping blade strengthening durability
6. Printing ink system adopts advanced back independent adjustment structure design, effectively strengthen the adaptability of printing products during printing process
7. Special design printing guide, effectively enhance the running stability and durability
8. PLC (programmable logic controller) as main control parts of equipment, simplify the circuit structure of equipment, enhance the stability of the system, and provides more flexible operability.
9. Manually adjust screen, extra locking device to prevent the printing process for operators

Parameter:

Model	PGE-1224	PGE-1530
Max printing size	1200 X 2400mm	1500 X 3000mm
Printing table size	1400 X 2600mm	1700 X 3200mm
Printing speed	Max.150 cycle/h	Max.180 cycle/h
Max frame size	1500 X 2900mm	1800 X 3500mm
Printing pressure	0 ~ 95kgf	0 ~ 60kgf
Scraping angle	60Â° ~ 90Â°	60Â° ~ 90Â°
Air pressure	6kgf/cm2	6kgf/cm2
Power	220V 1kW	220V 2kW
Dimension(L X W X H)	3600 X 1600 X 1200mm	4300 X 1800 X 1200mm
Weight	Approx. 450kg	Approx. 550kg
â Special specification can be made for customized size
