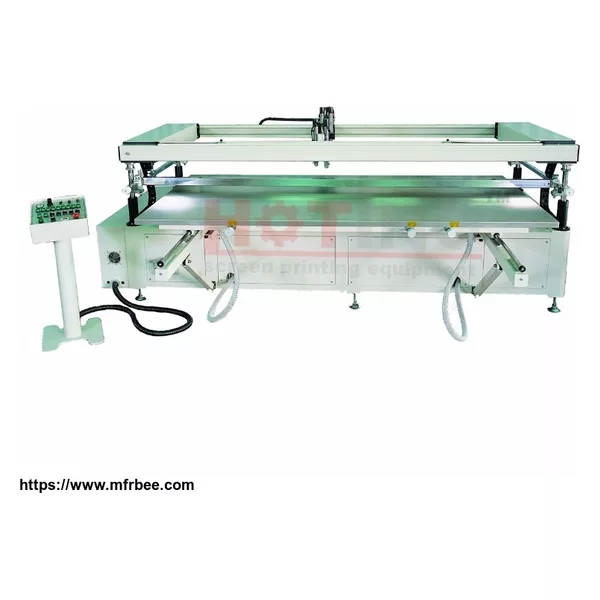

High precision large format screen printer

Application Scope:

This large screen printer series are suitable for indoor/outdoor poster, decal, sticker,back-lit poster, signage, bus panel, fleet marking, plastic sheet, acrylic sheet, wooden board, plywood boards, metallic plate, etc

Specification:

1. Screen fixed by pneumatic method, easy to operate

2. Evenness and ligh of aluminum honeycomb working table

3. Quality peel off device makes squeegee and height of screen lifting simultaneously

4. No trembling during up and down movement of the side frame by selecting the inverter control

5. Mitsubishi motor and all key parts from Japan, Germany, Italy, Korea, Taiwan to make sure quality

6. Combined integrated cylinder scraping blade improve stability

7. The ink does not overflow during printing by using the motor

8. Printing table auto feed in-out to decrease noise and vibration

9. All printing movement controlled by the screen panel

Optional:

1.) Swing type scraper and ink blade

2.) Destop blower system

3.) Touch screen control panel

Parameter:

Model	PGS-1224	PGS-1230
Max printing size	2400 X 1200mm	3000 X 1200mm
Printing table size	2700 X 1400mm	3300 X 1400mm
Printing speed	Max.200 cycle/h	Max.180 cycle/h
Max frame size	3200 X 1600mm	3900 X 1600mm
Printing pressure	0 ~ 95kgf	0 ~ 60kgf
Screen vibration	0 - 40mm	0 - 40mm
Scraping angle	60Â° ~ 90Â°	60Â° ~ 90Â°
Scraping Bias	Â±6Â°	Â±6Â°
Air pressure	6kgf/cm2	6kgf/cm2
Power	220V(380) X 3ph X 2kW	220V(380) X 3ph X 2kW
Dimension (W X D X H)	3700 X 2900 X 1450mm	4300 X 2900 X 1450mm
Weight	Approx. 1600kg	Approx. 1700kg
Special specification can be made for customized requirement.
