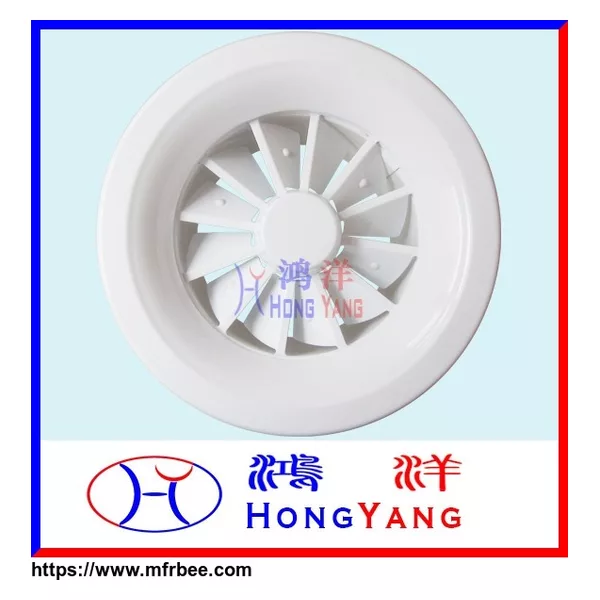

HY-KXL-J General Type

HY-KXL-C Side connection of supply air plenum box

HY-KXL-D Top connection of supply air plenum box

1. It is used as supply air outlet of central air-conditioning system.

2. The blade is designed in accordance with the principle of fluid-dynamics, which makes the airflow form eddy with certain initial velocity. Therefore, it can enlarge supply air distance and cover area. Also, it can make the airflow recycle sufficiently to reach the best effect in space.
3. It is mainly applicable for ventilation and supply air diffuser of air conditioner system. It is installed in the large building with floor height ≥3.8m, such as airport, theatre, exhibition hall, gymnasium, etc.
4. It is composed of round shell with diffuser and rotational blade. The rotational blade can be adjusted by hand operated or electrical control. The electrical control type can be equipped with BELIMO company’s electric actuator of LM series.
5. The following standard dimension is available for choosing:

Specification and dimension (mm):

Specification	φB	φD	H1	H2	H3	H4	K	ΦD1	Φd2	T	Duct opening
φ315	318.5	248	483	203	425	342.5	435	464	382	63	φ412
φ400	403.5	313	603	238	534	420.5	500	567	464	80	φ515
φ630	633.5	398	848	383	748	615.5	750	871	708	125	φ810
φ800	803.5	498	1133	568	998	850.5	1000	1077	871	160	φ1015

Notice:

1. It can be equipped with adjustable air damper. And has the feature: Large of supply rotary jet flow and induction ratio, fast of wind velocity decrement, etc.

2. In ventilation and air conditioning system, it can be as supply air vent of large airflow and large temperature difference, in order to reduce the number of air vents.

3. It can used as supply air vent in the low space within 3m, as well as in high space within 10m.
