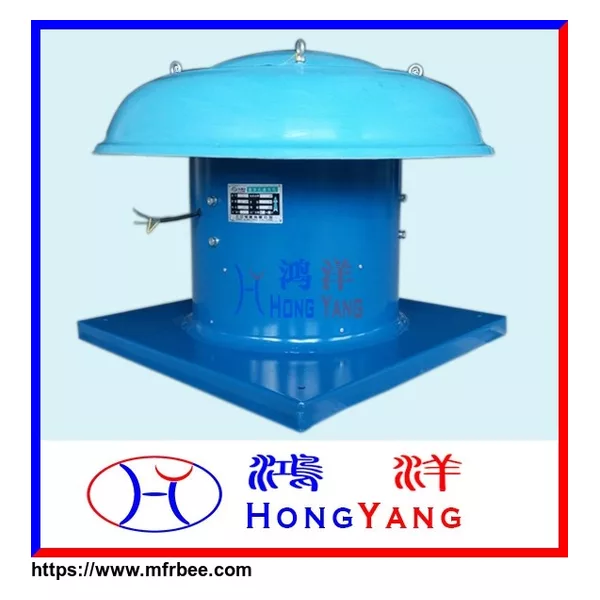

HY-HTF(A)-W Dual-purpose Rooftop Fan of Fire Protection and Ventilation

FOB Price
USD $300.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
Wooden case package, or as Customer request
Delivery
Within 7-10 days after getting your payment.

HY-HTF(A)-W Dual-purpose Rooftop Fan of Fire Protection and Ventilation

Model: HY-HTF(A)-W

Features and Application

1-- It is consists of mold pressing axial-flow impeller, built-in heat-resistant motor (equipped with specialized cooling system), rain-proof hood and waterproof base. It has the advantages, such as: high performance of heat-resistant, high efficiency, small volume, and easy to install, etc.

2-- Use double speed motor and direct connection drive, reach the effect of one machine dual use (In usual, its function is ventilation of supply air and exhaust air; In fire situation, its function is exhaust smoke of high temperature). It can be Auto. Remote controlled after equipping with electric cabinet.

3-- According to the Public Safety Industry Standards of GA 211-1999 < High temperature-resistant test methods for fire fan in smoke-venting system>, it can be continuous running more than 100 minutes under the condition of high temperature 400℃ and continuous running 20 hours/time without damaged under the condition of medium temperature 100℃. It is recognized by fire department the whole country to use in the exhaust ventilation site of rooftop type.

4-- It has unique structure: there is no direct contact between gas and motor and it is equipped with a specialized cooling system. It is the rooftop fan of heat-resistant, moisture-proof and corrosion-proof. It is used in the industrial site of high-temperature and high-humidity for roof ventilation, such as: electricity system, oil industry, chemical industry and metallurgical industry.


Dimension (unit: mm)

Machine No. ФA B C ФD H1 H2 M
5 890 700 550 510 880 60 Ф12.5
5.5 1000 750 700 560 910 60 Ф12.5
6 1000 800 650 610 1000 60 Ф12.5
6.5 1220 850 700 660 1100 80 Ф15
7 1220 950 750 710 1140 80 Ф15
8 1340 1050 900 810 1140 80 Ф15
9 1500 1150 1000 910 1400 80 Ф15
10 1650 1250 1100 1010 1400 80 Ф15
11 1800 1400 1250 1110 1500 100 Ф18
12 1800 1500 1350 1210 1650 100 Ф18

Note:

1. The foundation height of rooftop fan should ≥250mm, M: Fixed bolt hole (For user reference only), generally no punching when goods leaving factory.

2. ”C” in the drawing above is for reference when the fan is with adjustable ventilation door, generally the fire protection rooftop fan is without adjustable ventilation door.
