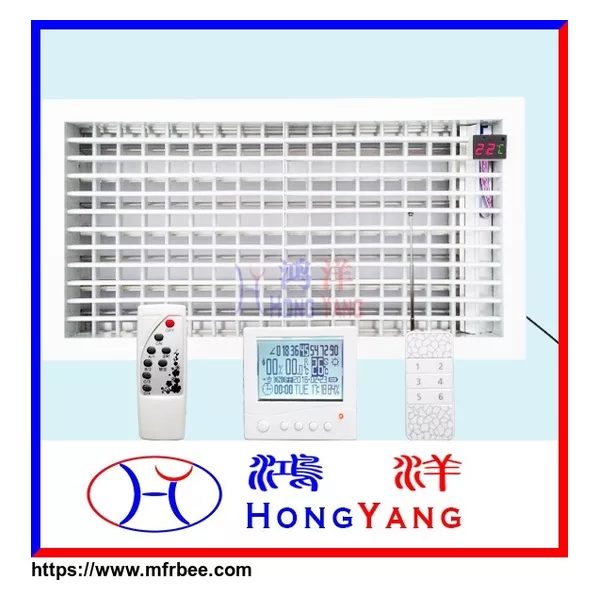

Wireless Remote Control Motorized Air Grille

Smart Wireless Remote Control Motorized Air Vent can automatically control to reduce energy cost. Evenly distribute air flow for Heating or AC, Automatic and Intelligent control room venting. Shut off air flow to rooms when they are unoccupied or automatic temperature control for each room. Partially open, half-open or close to balance air flow.

Function for Model: HY-KYB-H and HY-KYB-C

1-      Infrared cannot control through walls and remote-controlled distance is about 6m.

2-      Through walls can control through walls and remote-controlled distance is about 30m ~ 50m (Depend on how many walls between the remote control and the motorized air vent.)

3-      6 degree angle to remote control air volume (0°，18°，36°，54°，72°，90°)

4-      There has the LED display which can show Temperature, Humidity and Angle.

5-      Power: AC220V, AC110V, DC24, DC12V, DC5V are available

6-      The working way of blade: Can be opposite or parallel to adjust.

Opposite type: It can adjust air volume well.

Parallel type: It can adjust the direction of air.

Our smart wireless remote control motorized air vent has the Usage Pattern:

1 pc controller can control 1 pc vent

1 pc controller can control N pc vent

N pc controller can control 1 pc vent

N pc controller can control N pc vent

Structural parts:

1-      The material is aluminum. The air vent is power coated and the air damper is oxidized.

2-      It is very thin, the motorized damper part is 43mm thickness (Not include the air vent part)

3-      Air vent: Can be air grille, square diffuser, air louver, etc.

4-      Size: Any size is available.

5-      Blade: It is double-layer hollow blade, very strong and firm. And has the function of thermal insulation and sound insulation.

6-      Sealing strip: Add sealing strip on blade, it is very airtight.

About the function for Model HY-KYB-W and other model, please contact us to get more information.

Model HY-KYB-W: It has smart wireless remote thermostat

Model HY-KYB-Y: It is WIFI type and can control through computer.

Model HY-KYB-YW: It is WIFI type with WIFI thermostat to control.
