Mist Eliminator Element
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
MIST ELIMINATOR KNITTED MESH PAD, PP AND PTFE MIST ELIMINATOR
We supply mist eliminator knitted mesh to our customers in Canada, Thailand, Australia, UK, etc. Made from ss to PP, PTFE knit mesh materials, mist filters are used in evaporator demister, knock out drums and other filter uses.
316 SS Mist Knitted Mesh for Desalination Plant Evaporator Demister
Mist eliminator in 6 different sizes.
Mist Eliminator ( Model 300 x 850 )
Size: 300 mm width x 850 mm length x 100 mm height
Material: 316 stainless steel
Standard/specification: VDI 3679 BLATT 3
Application: For evaporator chamber demister desalination plant.
Mist Eliminator ( Model 400 x 1000 )
Size: 400 mm width x 1000 mm and 50mm length x 100 mm height
Material: 316 stainless steel
Standard/specification: VDI 3679 BLATT 3
Application: For evaporator chamber demister desalination plant.
Mist Eliminator ( Model 300 x 1050 )
Size: 300 mm width x 1000 mm and 50mm length x 100 mm height
Material: 316 stainless steel
Standard/specification: VDI 3679 BLATT 3
Application: For evaporator chamber demister desalination plant.
Mist Eliminator ( Model 500 x 1050 )
Size: 500 mm width x 1000 mm and 50mm length x 100 mm height
Material: 316 stainless steel
Standard/specification: VDI 3679 BLATT 3
Application: For evaporator chamber demister desalination plant.
Mist Eliminator ( Model 500 x 850 )
Size: 500 mm width x 850 mm length x 100 mm height
Material: 316 stainless steel
Standard/specification: VDI 3679 BLATT 3
Application: For evaporator chamber demister desalination plant.
Mist Eliminator ( Model 400 x 850 )
Size: 400 mm width x 850mm length x 100 mm height
Material: 316 stainless steel
Standard/specification: VDI 3679 BLATT 3
Application: For evaporator chamber demister desalination plant.
Knitted Wire Mesh Mist Eliminator (SS304)
Knitted mesh pad
Round - Diameter: 440 mm
Height: 150 mm
Pad surface: Smooth
Side structure: Knitted mesh sewing
Overall size structure: Integral - Flat pad
Support grids: Round bar
Mesh material: SS304

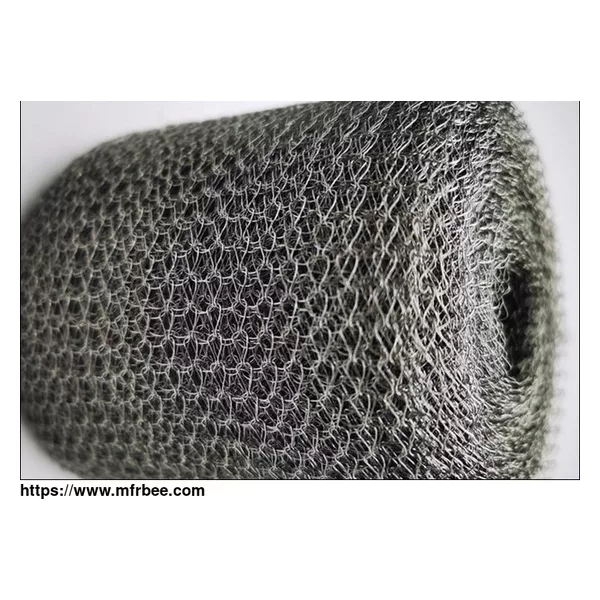

Knit Mesh 16" width X 50m length, 0.3-0.35mm diameter wire
Mesh: size: 16" width x 50m length
Wire diameter: 0.3-0.35mm
Material: corrugatted 304/316 ss knitted
Application: Wire mesh used in demister pads / mist eliminator
Style: Yorkmesh in ply shape
Packing: 50m/roll
Mist eliminator Polypropylene Knitted Wire Mesh
PP Knitted wire mesh
PTFE Monofilament Knitted Wire Mesh Mist Eliminators
Hole sizes varies according to specific applications
Note: Send us your inquiry and we will provide an effective offer including specifications, delivery time and prices based on the information provided. Sample provided before bulk supply.
