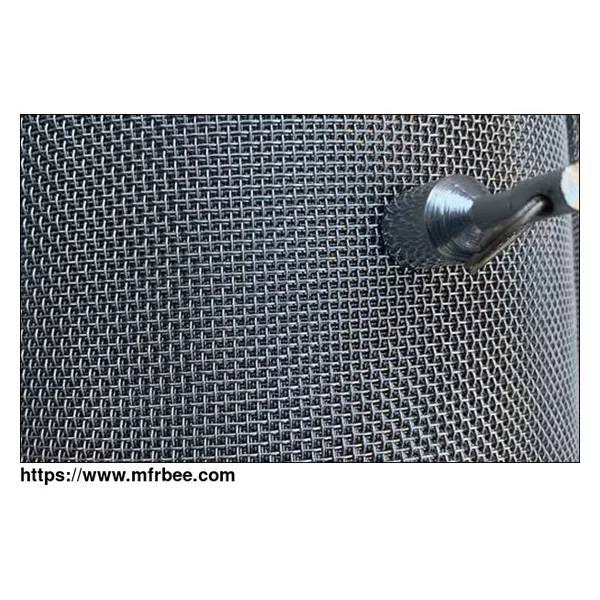

430 stainless steel wire mesh is a kind of magnetic ss wire mesh offering better thermal conductive performance than austenitic stainless steel series material, mainly used for industrial filtering, food industry filtering, sugar filtering with a popular mesh range of 1 - 300mesh in square opening.
Stainless steel 430 (1Cr17) Wire Mesh
Wire diameter 0.038-2.03mm
Mesh counts 1-300 mesh
Surfuce: Smooth
Weave: Plain weave / twill weave / dutch weave
Opening: Square
Features:
430 stainless steel wire mesh is magnetic;
Corrosion resistant;
Resistant to stress corrosion and oxidation;
430 magnetic stainless steel wire mesh has a thermal expansion coefficient smaller than austenitic ss;
Resistant to thermal fatigue, with adding the stable element titanium, mechanical performance of welded parts is good.
With magnetism, 410/430 stainless steel wire mesh is also called magnetic stainless steel wire mesh.
430 stainless steel is an economical choice for corrosion and abrasion resistance, 430 woven wire cloth is commonly used to make strainers, filter screens, and sieves. It complies with ASTM E2016 standards for dimensions.
Specification Sheets
430 Stainless Steel Wire Mesh | ||||
Mesh Size | Opening Size | Open Area | Wire Dia. | Lg., ft. |
2 × 2 | 0.437" | 76% | 0.063" | 5 |
4 × 4 | 0.203" | 66% | 0.047" | 5 |
6 × 6 | 0.132" | 63% | 0.035" | 5 |
10 × 10 | 0.075" | 56% | 0.025" | 5 |
16 × 16 | 0.0445" | 51% | 0.018" | 5 |
20 × 20 | 0.034" | 46% | 0.016" | 5 |
40 × 40 | 0.015" | 36% | 0.01" | 5 |
Weaving type of 410 | 430 stainless steel wire mesh
Material of SS 410 | SS 430 wire mesh
Euronorm (EN) number | AISI/SAE steel grades | UNS | JIS |
1.4006 | 410 | S41000 | SUS410 |
1.4016 | 430 | S43000 | SUS430 |
410 | 430 stainless steel chemical composition by weight (%)
AISI/SAE steel grades | Cr | Ni | C | Mn | Si | P | S |
410 | 11.5-13.5 | <0.75 | <0.15 | <1 | <1 | <0.04 | <0.03 |
430 | 16-18 | <0.75 | <0.12 | <1 | <1 | <0.04 | <0.03 |
Applications of SS410 | SS430 wire mesh
SS 410 | 430 mesh is widely used in a variety of industries, such as Food, Chemical, Appliances.
410 | 430 magnetic wire mesh is frequently selected where mild corrosion heat resistance and high strength properties are required Such as some forming and cold heading operations (particularly when heat treatment is to occur).
SS410 | SS430 wire mesh can be widely used with food products, chemicals, sugar products due to its excellent corrosion resistance to nitric acid and organic acids contained in foods.
