Nickel Wire Mesh

The nickel wire mesh is made by weaving nickel wires processed from vacuum melting process, by forging, rolling, annealing drawing. We use quality nickel wire for producing nickel mesh and screen: Nickel 99.9%, N2, N4, N6, N8 and other grades. The wire diameter ranges from 0.025mm-0.6mm packed in Coil or Spool. The nickel wire is produced in accordance to Standard ASTM B160/B162, AISI,DIN, or GB etc. Nickel mesh can also be expanded or knitted.
We supply nickel wire mesh woven from 12mesh to 200mesh, in a variety of nickel materials: Nickel-200 (pure nickel) , Ni200, Ni201 and etc.

Uses: Nickel wire mesh is temperature resisting(1000 Celsius degrees), acid resisting, alkali resisting. The products are used in electric apparatus, chemical machinery, filter and battery.
Samples: 12"x24" samples of nickel mesh can be supplied for quality check.

Nickel Filter Screen
Type: Plain weave
Mesh size: 100
Wire diameter: 0.0045"
Material: Nickel Cu Alloy Monel Wire Cloth
Size: 36" width
Wire cloth - Nickel-copper alloy for filter material

Plain Weave Nickel Wire Mesh for Alkaline Hydrogen Elektrolyzers
Nickel Mesh - Type: Pleave weave
Mesh:12 or 14 mesh
Pure Nickel Wire Mesh
200x200mm wire mesh. Mesh count 10 Pure Nickel mark N8
200x200mm wire mesh. Mesh count 10 Pure Nickel mark NY3
200x200mm wire mesh. Mesh count 10 Pure Nickel mark N6
200x200mm wire mesh. Mesh count 80 Pure Nickel mark N8
200x200mm wire mesh. Mesh count 80 Pure Nickel mark NY3
200x200mm wire mesh. Mesh count 80 Pure Nickel mark N6
200x200mm wire mesh. Mesh count 150 Pure Nickel mark N8
200x200mm wire mesh. Mesh count 150 Pure Nickel mark NY3
200x200mm wire mesh. Mesh count 150 Pure Nickel mark N6

Nickel Mesh
Square hole mesh: 20mesh
Nickel wire mesh 200 mesh
Nickel wire mesh 300mesh
Nickel wire mesh 400 mesh

Nickel or ss 200 x 200 mesh count screen for filtration
Mesh count: 200
Wire diameter(mm):0.053
Aperture(mm) : 0.07
Sheet length: 30 m, width: 0.6 m

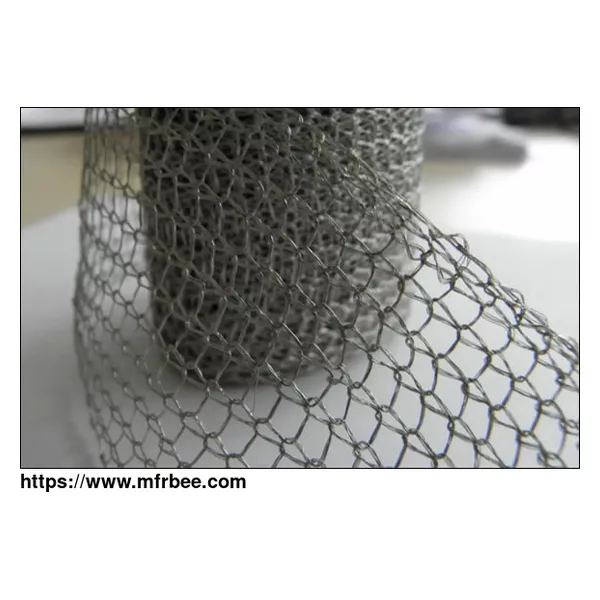

Nickel Knitted Wire Mesh
Wire thickness: 0.15mm~0.2mm
Roll: 1ea (width 300mm)

Expanded Nickel Foil

Starting material thickness 0.10mm
Expanded material thickness 0.178mm ±0.025mm
7.62cm wide roll
Long Way of Diamond (LWD) 1.524mm
Short Way of Diamond (SWD) 0.838mm
SWO 0.4826mm
Strand Width 0.127nnm-0.203mm
Not Annealed
Nickel 201 purity level
Roll width 7.62cm

Nickel Alloy Mesh
Material: Nickel-copper alloy confirming to QQ-W-281
In sheets

N6 and N8 Nickle Wire Mesh
100 mesh, material grade N8
140 mesh, material gradee N6
200 mesh, material grade N6
N6 nickel wire mesh, 180x180

Nickel N4 Wire Mesh
180 Mesh, plain weave or twill weave

Roll size: 300mm x 2000mm

Nickel Wire Mesh, Nickel 99.9%
Nickel 99.9% wire mesh, 0.30mm diameter, 32 mesh, size 100mm x 170mm, Edge width 5mm
Nickel 99.9% wire mesh, 0.18mm diameter, 60 mesh, size 100mm x 170mm, Edge width 5mm
Nickel 99.9% wire mesh, 0.30mm diameter, 32 mesh, size 230mm x 230mm, Edge width 5mm

Nickel 99.9% wire mesh, 0.18mm diameter, 60 mesh, size 230mm x 230mm, Edge width 5mm

Nickel-200 alloy (pure nickel) wire screen cloth

Wire size 0.055mm diameter
Mesh:180 mesh
Roll length 300mm and width 200mm
