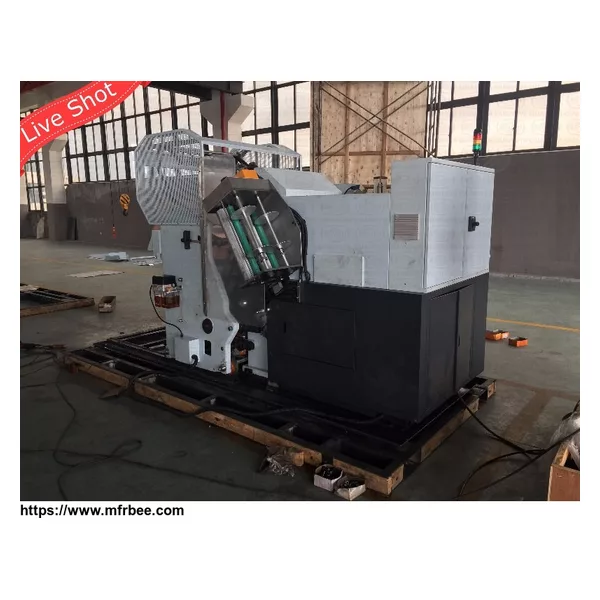

TL 780 Automatic Die Cutting Hot Foil Stamping Machine
Product Quick Detail
- FOB Price
- USD $60,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Wooden Case
- Delivery
- 35 Days
Specifications
Advantage:
1. High quality electric parts
Over half of the machine electric parts use high quality international brand which could keep the machine in very good condition, running smooth and stable.
2. Strong metal machine body
A stronger body that made by high strength metal it could offer more capacity, that makes machine afford more cutting speed.
3. Automatic Paper Feeding with servo motor control
Tried about feeding paper by manual? Try our automatic paper feeding system, low staff cost, feeding full automatically, and controlled by high accuracy servo system.
4. PLC and Sensor
PLC that is short for “programmable Logical controller”, which could make sure that every working part gets perfect cooperation when running complex producing process. Most of them that we use for
our machines is PANASONIC, MITSUBISHI and other international brand with WE!NVIEW touch screen. Also compare with the sensor from OMRON covered the machine body to keep safe of the equipment and
operator.
|
MACHINE SPECIFICATIONS
|
|
|
Function
|
Sheet Cardboard Die Cutting, Automatic Hot Foil Stamping
|
|
Max. sheet size
|
780*560 mm
|
|
Min. sheet size
|
280*220 mm
|
|
Max. feeding pile height
|
800 mm
|
|
Max. delivery pile height
|
160 mm
|
|
Max. working pressure
|
110 T
|
|
Main motor power
|
12 kw
|
|
Air pump displacement
|
40 m³ / h
|
|
Paper range
|
100 - 2000 GSM
|
|
Max. mechanical speed
|
1500 S/H Paper less than 150 GSM
2500 S/H Paper More than 150 GSM |
|
Machine noise
|
Less than 81 db
|
|
Electric plate power
|
8 kw
|
|
Overall machine dimensions
|
3700*1910*2200 mm
|
