MACHINE SPECIFICATIONS | |

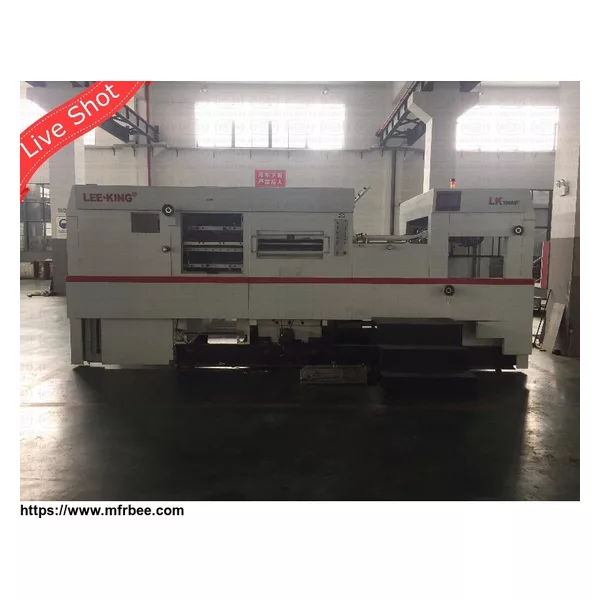

Model | LK 106M Automatic Die Cutting Machine |
Max. sheet size | 1060*770mm |
Min. sheet size | 450*370mm |
Max. die cutting size | 1050*750mm |
Gripper Margin | 8-17mm |
Paper range | 90 - 2000 GSM ( Cardboard ) 0.1 - 2 mm ( Cardboard ) no more than 4 mm ( corrugated ) |
Max. cutting force | 300 T |
Max. mechanical speed | 7500 S / H |
Max. delivery pile height | 1200mm |
Max. feeding pile height | 1350mm |
Main motor power | 11 kw |
Power range | 17.6 kw |
Machine weight | 16000kg |
Air supply | 0.6 MPA, more than 0.37 m³ / min |
Overall machine dimensions | 5050*4200*2260mm |
