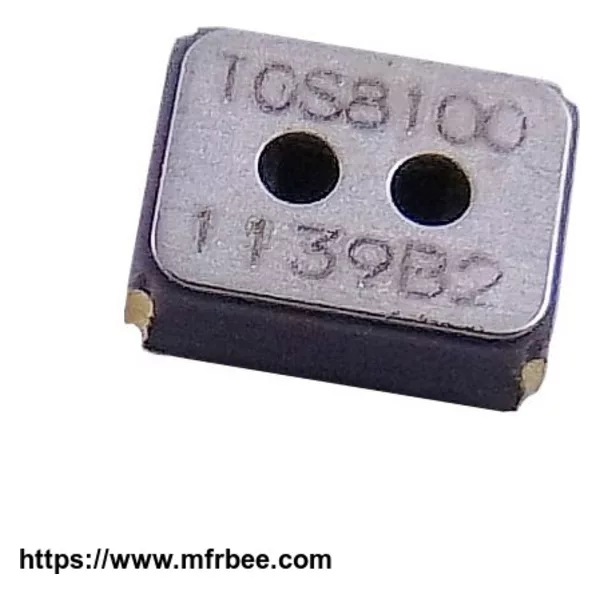

TGS8100 - For The Detection of Air Contaminants
Product Quick Detail
- Brand Name
- Figaro
- Minimum Order
- 1
- Place Of Origin
- Japan
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
TGS8100 - for the detection of Air Contaminants
Features
* Surface mount package
* Low power consumption
* High sensitivity to cigarette smoke, cooking odors, and gaseous air contaminants
* Long life
* Low cost
Applications
* Indoor air quality monitors
* Air cleaners
* Ventialtion control
* Kitchen range hood control
The sensing element is comprised of a sensing chip and an integrated heater formed on a silicon substrate using MEMS technology, and a metal-oxide semiconductor layer formed on the sensing chip. The device is housed in a surface-mount ceramic package. Due to miniaturization of the sensing chip, TGS8100 requires a heater power consumption of only 15mW, and is suitable for low-power equipment and battery-operated instruments. In the presence of detectable gas, sensor
The TGS8100 has high sensitivity to low concentrations of gaseous air contaminants such as cigarette smoke and cooking odors. By utilizing the change ratio of sensor resistance from the resistance in clean air as relative response, human perception of air contaminants can be simulated and practical air quality control can be achieved.
Specifications
|
Model number |
TGS8100 |
||
|
Sensing principle |
MOS type |
||
|
Standard package |
Ceramic |
||
|
Target gases |
Air contaminants (hydrogen, ethanol, etc.) |
||
|
Typical detection range |
1 ~ 30ppm H2 |
||
|
Standard circuit
conditions
|
Heater voltage |
VH |
1.8V DC±2% |
|
Circuit voltage |
VC |
max 3.0V DC for 2msec 0v ≥ 998msec |
|
|
Load resistance |
RL |
variable (10kΩ min.) |
|
|
Electrical
characteristics
under standard test
conditions
|
Heater resistance |
RH |
approx. 110Ω at room temp.
|
|
Heater current |
IH |
8mA (typical) |
|
|
Heater power consumption |
PH |
15mW (typical) |
|
|
Sensor resistance |
RS |
10kΩ ~ 300kΩ in air |
|
|
Sensitivity (change ratio of Rs) |
~0.6 |
Rs (10ppm H2)
Rs air |
|
|
Standard test
conditions
|
Test gas conditions |
normal air
at 20±2˚C, 65±5%Rh |
|
|
Circuit conditions |
same as std circuit conditions
|
||
|
Conditioning period before test |
1 hour or longer |
