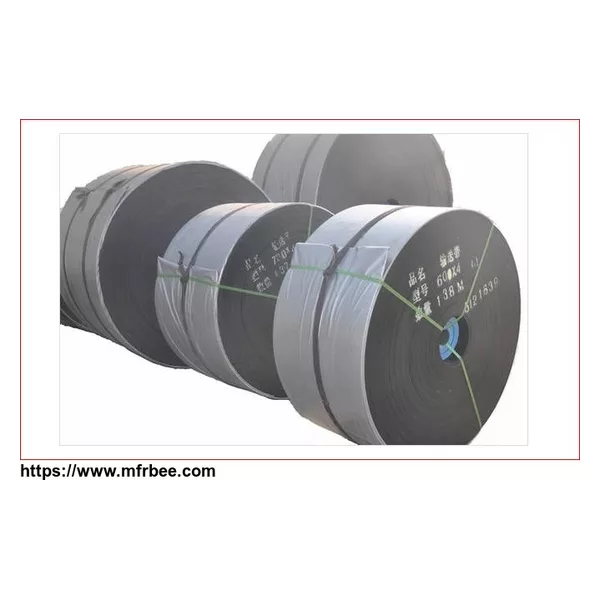

Mainly applied in the places with long distance, heavy-load, strong chemical corrosion and other strict conditions,especially suitable for humid environment. Polyester canvas is used as skeleton, the structure is same to ordinary conveyor belt. Have light and thin belt body,fatigue resistance,impact resistance, good groove forming property, low coefficient of elongation, good size heat stability, humidity resistance, high force and other features, it is the development direction of fabric core conveyor belt. In addition to general use, there are oil resistant,acid alkaline resistant,cold resistant,static electricity conducting and other types.
Technical requirements: implement GB/T7984-2013 standard
Technical of Product Specifications:
Fabric structure | Fabric materials | Fabric | NO.of fabric layer | Width (mm) | Cover thickness (mm) | ||
wrap | weft | top | bottom | ||||
Polyester canvas | Polyester fiber | Nylon fiber | EP100 | 2-10 | 300-1400 | 3.0-8.0 | 1.5-4.5 |
EP125 | 2-10 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
EP150 | 2-10 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
EP175 | 2-10 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
EP200 | 2-8 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
EP250 | 2-8 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
EP300 | 2-8 | 300-1400 | 3.0-8.0 | 1.5-4.5 | |||
Note: The thickness of covering rubber, number of fabric layer, width and each roll length can be according to client’s requirements designed. |
