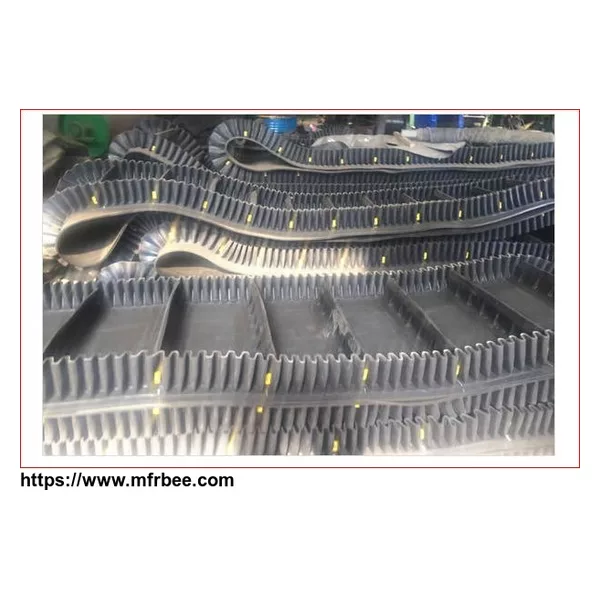

Sidewall Corrugated Conveyor Belt
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 100
- Packaging
- According to customer requirements
- Delivery
- 10Days
Specifications
Sidewall corrugated conveyor belt shall be researched, developed and produced according to domestic and foreign advanced series product technology. This product is widely used in mine, coal ore, station, wharf and other delivery and handing places, able to deliver bulk, granulated and powdery materials, it is a delivery carrier with large delivery angle, small floor area, high efficiency and energy conservation.
Feature:
1. Based belt has lateral stiffness, maintain central section not to hunch up, middle part of return stroke not to droop, rubber belt to have long service life when two sides of bearing branch angle changing section.
2. Raised edge has good compression strength and longitudinal stability.
3. Internal side of raised edge titles outward, external side has reinforced bar with good supporting capacity and resistant to wear.
4. Raised edge baffle plate and base belt adopt secondary sulfuring technology, having solid combination and compact coordination.
5. Technical indicator: Pls refer to the corresponding standards concerning ordinary fabric core and nylon fabric conveyor belt.
Dimensions Of Standard Model Sidewall Belt And Raised Edge Diaphragm Plate Are Shown In The Table Below:
| Type | S | S | S | S | S | S | S |
| Block high (H) | 60 | 80 | 120 | 160 | 200 | 240 | 300 |
| Amplitude (BW) | 44 | 44 | 44 | 65 | 70 | 80 | 90 |
| Pitch of wave (T) | 42 | 42 | 42 | 65 | 65 | 65 | 70 |
| Bottom width (BF) | 45 | 50 | 50 | 80 | 90 | 90 | 95 |
| Discounted square meters (SK) | 0.61 | 0.75 | 1.69 | 2.68 | 3.53 | 4.75 | 7.03 |
| Height of accessory baffle plate (H) | 50 | 75 | 110 | 150 | 180 | 220 | 280 |
| Type of baffle plate | CT | CT | CT | CT | CT | CT | CT |
| Bottom width of baffle plate (F) | 55 | 70 | 100 | 100 | 160 | 160 | 180 |
| Discounted square meters of baffle plate (CFK) | 0.55 | 1.29 | 1.76 | 2.24 | 3.39 | 5.00 | 7.05 |
