Egg Collection Equipment

H frame egg collection

Application
1) Working for large-scale and medium-sized farm, together with H type layer, broiler, rearing cage equipment
2) Stable performance of egg collection system can reduce damage to eggs.
3) High efficiency can save labor cost.
4) Egg can be transported to outside of poultry house directly so as to prevent the contact of workers with birds.

Specification
Installed on H type auto cage system


NO.	ITEM	Specifications
1	Size(L×W×H)	(2.2~2.8)M×(1.0~1.5)M×(2.0~2.6)M
2	SourceType	AC,3-PhaseSource
3	RatedVoltage	380V
4	RatedPower	0.75~3.0KW
5	Eggcollectionability	3000PIECES/HOUR
6	EggBrokenRate	≤1%
7	BeltWorkingSpeed	1~3M/MIN
8	WorkingType	4tiersworkingtogether
9	PaintThickness	≥0.05MM
10	MachineWeight	700kgs
11	Egg collecting belt	Import from Italy
12	Egg collecting belt width	100MM

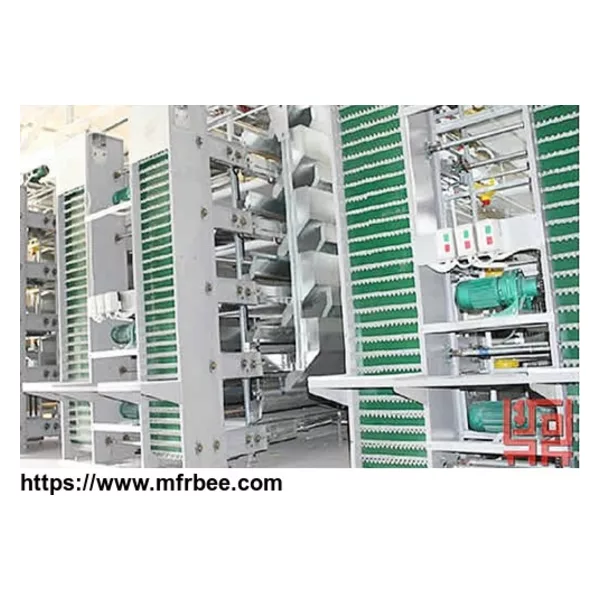

Farm using



Fittings
