JX01 series drinking straw extrusion line

FOB Price
USD $10,500.00 / Piece
Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
wooden box
Delivery
30 Days
01 series drinking straw making machines use polypropylene (PP) as raw materials, with the use of masterbatch, after melting, extrusion, shaping, cooling, pulling, cutting, then produce colorless, color, two-color, three-color drink straw. It is composed of main body, tooling, cooling system, cutting machine, with a variety of models such as single color extrusion line, two color and two color co-extrusion line, three color extrusion line, etc.

Characteristics:
  1. Wide application: Drinking straws, lollipop stick, pen tube, cotton stick, medical tube, all kinds of toys tube, etc.
  2. Easy to operate. One operator is enough to run the whole line
  3. Cut form: Diversified cut-end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°
  4. With stable output and wide range of color options.

Quality Construction Throughout

  • The gears and bearings are precision ground and hardened to ensure smooth and quiet operations.
  • The screw and barrel is manufactured from Aluminum Chromolybdenum alloy steel and is stress relieved.
  • The die undergoes nitride hardening treatment for a long service time.
  • The water tank and the surface of cutting machine are made of 304 stainless steel.
  • The main extruder’s screw designed to suit plastic material specified. Tube die head assembly manufactured in tool steel.
Driving motor Main motor:7.5kw frequency conversion

Traction and cutting device :0.75kwX2

Production Capacity Capacity:

20 to 25kg/h

Drinking straws:60000pcs/h
Cotton swab sticks:50,000 pcs/h
Ballpen refills:4,000 pcs/h
Raw material: PP,PE
Straw specifications Diameter 2-13mm
Length tolerance ±0.1-1mm
Cutting and traction device control by double frequency conversion 0.75kw×2
Main Screw Main Screw: diameter 50 mm Length/Diameter: 28/1
Machine size 2.2m*1m*1.3m
Complete line size 10m*1m*1.7m
Machine weight 400kg
Complete line weight 1000kg
  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Asia, Africa, Middle East, America
  • Founded Year:2009
  • Address:3 Ruiyun road, Zhujiang industrial park, Pukou zone, Nanjing
  • Contact:Forbes ma

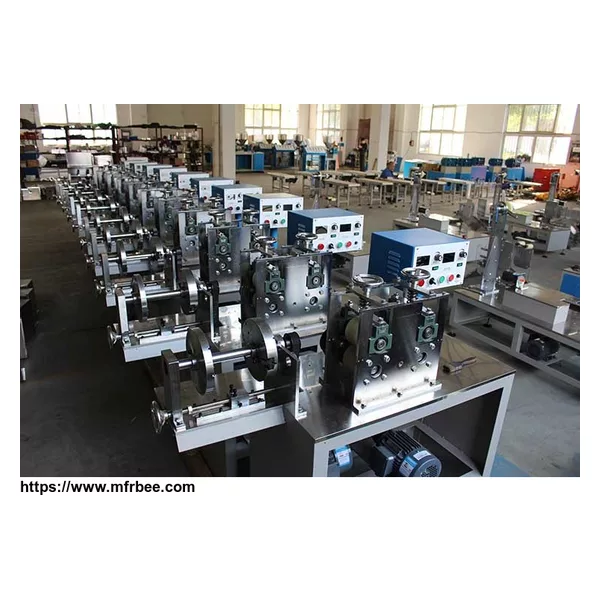

more images of JX01 series drinking straw extrusion line
more images of JX01 series drinking straw extrusion line
