Usage:

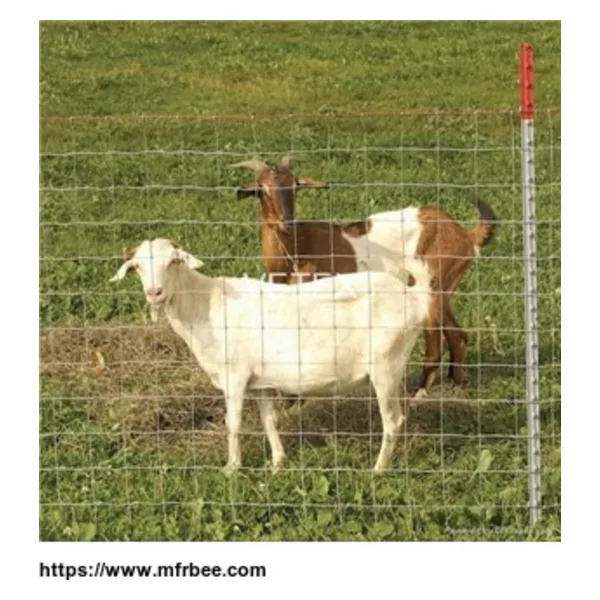

Knotted Wire Mesh Fences are made for safety fencing against fierce striking of cattle, horse or goats. Knotted Wire Mesh Fences make an ideal fencing material for grasslands husbandry.
Material:Knotted Wire Mesh Fences are made of hot-dipped zinc coated steel wire.
Features:High strength and tensile strength.
Weaving method:N/A
Other:N/A
Standard Knotted Wire Mesh Fences fall in grades as follows:
Specifications of Knotted Wire Mesh | |||||
Sizes | Number of Wrap Wire | Roll width (mm) | Wrap Weft Wire Diameter | ||
Edge Wrap Wire | Middle Weft Wire | Wrap Wire | |||
91L5/70/15 | 5 | 700 |
2.8mm
|
2.5mm
|
2.5mm
|
91L8/110/15 | 8 | 1100 | |||
91L5/70/30 | 5 | 700 | |||
91L6/90/30 | 6 | 700 | |||
91L6/90/30 | 6 | 900 | |||
91L7/90/30 | 7 | 900 | |||
91L8/110/30 | 8 | 1100 | |||
91L5/70/60 | 5 | 700 | |||
91L/6/90/60 | 6 | 900 | |||
91L6/100/60 | 6 | 1000 | |||
91L7/90/60 | 7 | 900 | |||
91L7/100/60 | 7 | 1000 | |||
91L7/110/60 | 7 | 1100 | |||
91L8/110/60 | 8 | 1100 | |||
Package: waterproof paper inside and hessian paper outside or as the order. |
