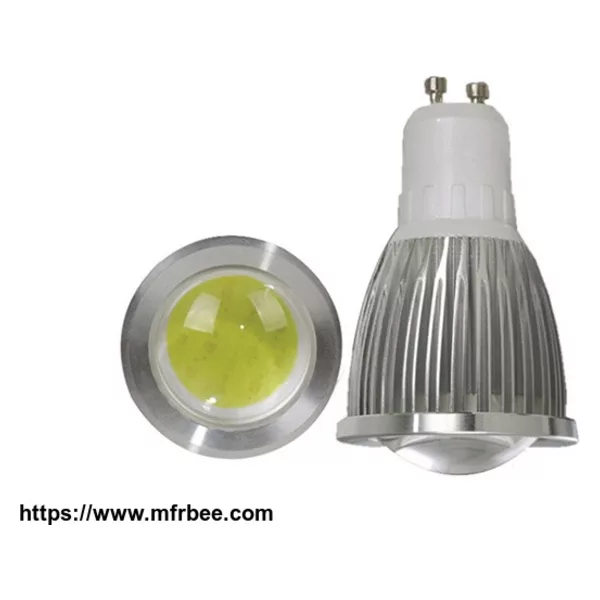

LED spotlight
Product sourcing details
Supplier: Sunway Lighting Co.,Ltd.
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Model:SC-GL-SDA1x5
◆Working Humidity:10%~95%
◆Storage Temperature:-35℃~+75℃
◆Storage Humidity:10%~95%
● The working voltage for the spotlight is AC100~120V or AC200~240V, pls confirm the working voltage of this product before installation. Connect wrong voltage will make a permanent damage to the light.
● Should not be installed in places with heat steam or caustic gas in case of affecting the lifespan.
Power:5W
Color:CW/PW/WW
Light Source:high power epistar led chip
Base:E27/GU10/MR16
Input Voltage:AC100-240V/12V
Working temperature:-20℃~+40℃
IP rank:IP50
Product Description
◆Adopt high power COB LED as light source, pure light color, good consistent CCT, energy saving .Luminous efficiency up to75lm/W, energy efficient.
◆Die-casting high thermal conductivity aluminum alloy body with spraying surface, gorgeous and delicate.
◆High reliability, two years warranty without replacing for normal use.
◆Long lifespan≥30000 hours，10 times more than traditional Halogen lamp’s.
◆Low Light decay, 3 ‰ for 1000hours normal working.
◆Green, no mercury, no UV radiation, fast starting, no flicker.
◆Beam angle: 24º , 38ºand 60º are available.
◆Advantages: better heat dissipation, light weight, more simple appearance than the same class normal LED lamp.
◆Application: It mainly alternative traditional halogen lamps and can be used in showrooms, art exhibition, hotel, home and other indoor lighting.
◆Die-casting high thermal conductivity aluminum alloy body with spraying surface, gorgeous and delicate.
◆High reliability, two years warranty without replacing for normal use.
◆Long lifespan≥30000 hours，10 times more than traditional Halogen lamp’s.
◆Low Light decay, 3 ‰ for 1000hours normal working.
◆Green, no mercury, no UV radiation, fast starting, no flicker.
◆Beam angle: 24º , 38ºand 60º are available.
◆Advantages: better heat dissipation, light weight, more simple appearance than the same class normal LED lamp.
◆Application: It mainly alternative traditional halogen lamps and can be used in showrooms, art exhibition, hotel, home and other indoor lighting.
Specifications:
Item No. | CCT(K) | Working voltage（V） | Input power（W） | Lumen (lm) | Color rendering index (CRI) | LED | Lamp types | Beam angle |
SC-GL-SD3x1-MR16 | 6000 | 12V | 5 | 680 | ≥80 | 5WCOB | MR16 | 24º/38º/60º |
SC-GL-SD5x1-GU5.3 | 6000 | AC100-240 | 5 | 680 | ≥80 | GU5.3 | ||
SC-GL-SD5x1-E27 | 6000 | AC100-240 | 5 | 680 | ≥80 | E27 |
Environmental requirements:
◆Working temperature: -35℃~+45℃◆Working Humidity:10%~95%
◆Storage Temperature:-35℃~+75℃
◆Storage Humidity:10%~95%
Attention
● Cut off the electricity in case of electric shock before installation.● The working voltage for the spotlight is AC100~120V or AC200~240V, pls confirm the working voltage of this product before installation. Connect wrong voltage will make a permanent damage to the light.
● Should not be installed in places with heat steam or caustic gas in case of affecting the lifespan.
Website:http://www.scivas-led.com/LED_Lights/LED_Spotlight/SC-GL-SDA1x5.html
- Company: Sunway Lighting Co.,Ltd.
- Country: China (Mainland)
- Contact: Wendy Han
