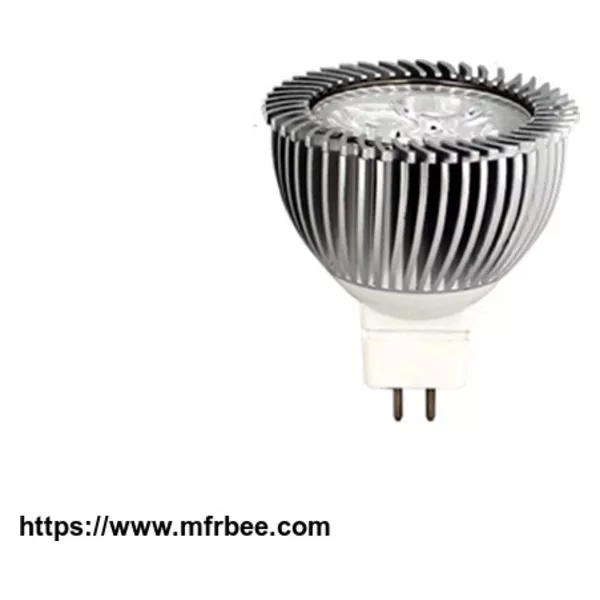

LED spotlight
Product sourcing details
Supplier: Sunway Lighting Co.,Ltd.
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Model:SC-GL-SD3x1-MR16
Pay attention to anti-fire, anti-electricity and anti-shake
Please read the structure carefully before installation, keep it safe and you may use it for future reference.
If the lamp failed to light, please check whether it connects power supply correctly and the power is in ON position.
If the lamp frequently turn on and off, please check whether the connection between power and the lamp is fixed well.
Note: Please contact professionals in case of above solutions do not work Precaution for Use
Suggest do not touch lamp housing while lighting in high temperature.
Please do not clean the product with rough item or cleaning agent, do not use the high-pressure water to wash it due to the lamp for indoor use only.
Some components of this product is irreplaceable, and can not maintain it. If damage, please abandon it.
Please recycling the product seriously after it reach its using lifespan. You also can get some advice from the local retailer.
Recommend working temperature -20 ℃ ～ 40 ℃
If the lamp or wire insulation has been damaged, please stop using, and check it regularly.
The lamp need professional person to install and maintain it.
﹡ Please contact with the supplier about the details of warranty and working environment. Sorry we won't notice if there has any change.
﹡ If any queries about the specification, please consult with the qualified engineer.
Power:3W
Base:MR16
Input Voltage(V):AC100-240
PF:＞ 0.92
View Angle( °):60
Lumen(Lm):200
Product Description
1. Adopt high quality LED 1W
2. Energy saving, high efficiency drive, low power consumption
3. Long lifespan, up to 50.000hours
4.Superior ability to adapt to the environment :indoor -40°C-65°C , humidity ≤65% can be normal safe operation
5. Durable and reliable : No tungten wire, the possibility of non-normal end-of-life is very small, very low maintenance costs
6. DC power supply, there is no stroboscopic
1. Direct halogen spot light replacement to save energy and protect environment.
2. Suitable for library, museum, storage room, jewery counter or other places.
2. Specifications.
2. Energy saving, high efficiency drive, low power consumption
3. Long lifespan, up to 50.000hours
4.Superior ability to adapt to the environment :indoor -40°C-65°C , humidity ≤65% can be normal safe operation
5. Durable and reliable : No tungten wire, the possibility of non-normal end-of-life is very small, very low maintenance costs
6. DC power supply, there is no stroboscopic
Application:
1. Direct halogen spot light replacement to save energy and protect environment.
2. Suitable for library, museum, storage room, jewery counter or other places.
2. Specifications.
2. Specifications:
Part No. | Base | Input Voltage(V) | Power(W) | PF | View Angle( °) | Lumen（ Lm ） |
SC-GL-SD3x1-MR16 | MR16 | AC100-240 | 3W | ＞ 0.92 | 60 | 200 |
SC-GL-SD3x1-GU10 | GU10 | AC100-240 | 3W | ＞ 0.92 | 60 | 200 |
SC-GL-SD3x1-E27 | E27 | AC100-240 | 3W | ＞ 0.92 | 60 | 200 |
Dimension Diagram :
Unit: mmWarning
Please do not connect power supply when the bulb is still in boxPay attention to anti-fire, anti-electricity and anti-shake
Please read the structure carefully before installation, keep it safe and you may use it for future reference.
Attention
Caustic or dissolvent chemicals may damage the protection curst. Normal working temperature is -20 ℃ ~ 40 ℃ , humidity is 0~95%. If above this range, it will affect the lifetime of product.Common failure and solution
If the lamp failed to light, please check whether it connects power supply correctly and the power is in ON position.
If the lamp frequently turn on and off, please check whether the connection between power and the lamp is fixed well.
Note: Please contact professionals in case of above solutions do not work Precaution for Use
Suggest do not touch lamp housing while lighting in high temperature.
Please do not clean the product with rough item or cleaning agent, do not use the high-pressure water to wash it due to the lamp for indoor use only.
Some components of this product is irreplaceable, and can not maintain it. If damage, please abandon it.
Please recycling the product seriously after it reach its using lifespan. You also can get some advice from the local retailer.
Recommend working temperature -20 ℃ ～ 40 ℃
If the lamp or wire insulation has been damaged, please stop using, and check it regularly.
The lamp need professional person to install and maintain it.
﹡ Please contact with the supplier about the details of warranty and working environment. Sorry we won't notice if there has any change.
﹡ If any queries about the specification, please consult with the qualified engineer.
