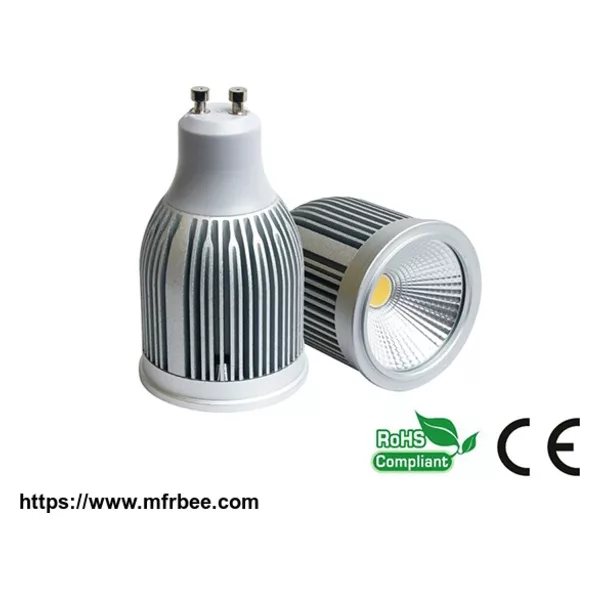

| Model number: | SC-LS-SD06-GU10-SP25 | SC-LS-SD06-MR16-SP25 | | Dimension: | Ø50 | Ø50 | | Hole size: | Φ72 | Φ62 | | Input voltage: | 100~240V | AC/DC 12V | | frequency: | 50/60Hz | 50/60Hz | | Power consumption: | 6W | 6W | | Power factor: | ≥0.9 | ≥0.9 | | CRI: | ≥80 | ≥80 | | LED source: | COB | COB | | Output voltage(Isolated): | DC25-35V | DC25-35V | | Output current(Isolated): | 300±10mA | 300±10mA | | Lumens(LM): | 850±100 | 660±50 | | Luminous Efficiency(LM/W): | Appr.80lm/w | Appr.80lm/w | | Beam angle: | 60° | 90° | | Color temperature: | CW, NW, WW | CW, NW, WW | | Life-span: | 50000H | 50000H | | Working temperature: | -20℃~+40℃ | -20℃~+40℃ | | Working humidity: | (20-90)%RH | (20-90)%RH | | Storage temperature: | -40℃~+85℃ | -40℃~+85℃ | | Storage humidity: | (10-90)%RH | (10-90)%RH | | Certification: | CE RoHS | CE RoHS | | Dimmable way: | Non/Triac | Non/Triac | |
|
|
|
|
|
|
|
|
