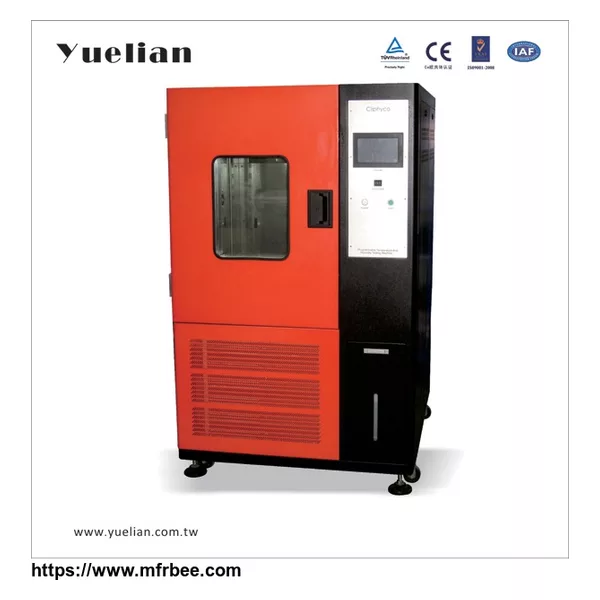

Product Summary
The temperature and humidity tester is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance. It is suitable for the industries of electron, electrical equipment, vehicle, metal, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Specification
Model | TS-80-2M | TS-150-2M | TS-225-2M | TS-408-2M | TS-1000-2M |
Capacity | 80L | 150L | 225L | 408L | 1000L |
Interior size (cm)W*H*D | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 100*100*100 |
Exterior size (cm)W*H*D | 93*131*81 | 100*155* 110 | 100*170* 120 | 110*180* 140 | 150*195* 165 |
Temperature range | -20℃~+150℃ | ||||
Temperature stability | ±0.5℃ | ||||
Temperature uniformity | ±2.0℃ | ||||
Humidity range | 20%~98%RH | ||||
Humidity stability | ±1.5% | ||||
Humidity deviation | ≤±5%RH when humidity is less than 75%RH; ≤±3%RH when the humidity is more than 75%RH | ||||
Heating up | heat up from -20℃ to +150℃,≤60mins | ||||
Cooling down | cool down from +20℃ to -20℃, ≤40mins | ||||
Ambient temperature | ambient temperature condition for the chamber working:+5℃~+35℃ | ||||
Exterior material | 1)stainless steel; 2)galvanized steel sheet bake finish | ||||
Interior material | SUS304 stainless steel |
