Purpose
Oven offers stable and reliable temperature environment of testing space for preheating dryness, qualitative change physics and chemical change requirement, is suitable widely used for rubber plastic materials, adhesive tape, food pharmaceuticals, daily-used chemical and other industries.

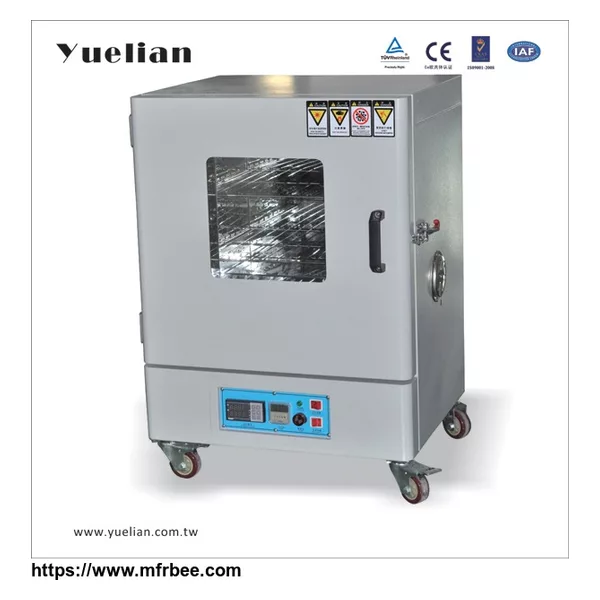

Precision oven is also called industrial oven, with the temperature range from room temperature to 200 degree normally. This is the standard type oven. Higher temperature is available, but it will be tailored/customized.
Design Standard
GB5170.2-1996; GB/T11158-1989 ;GB2423.2-1989 test B;
Specification
Interior Dimension |
40×40×45cm(T2-72),50×50×60cm(T2-150),60×90×50cm(T2-270),80×100×60cm(T2-480),
100x120x80cm(T2-960),120x130x80cm(T2-1248),120x150x100cm(T2-1800) |
Distribution Accuracy | ±1%(1℃)At-room 100℃ |
Control Method | P.I.D automatic temperature calculation |
Heating Method | Hot-air circulation system |
Temp. Resolution | 0.1℃ units display |
Temp. Range | Normal temperature +5℃~200℃ ( suitable customize 300℃ or 500℃) |
Material | Interior: SUS#304 stainless steel, Exterior: advanced painting |
Accessories | Double ultra-temperature protection and 2 shelf boards |
Time Setting | 0~9999 hours (minutes) power failure memory type |
Safety Protection | Independent ultra-temperature protection, safety overload switch |
Power | 220V Single phase |
Model: YPO-072 YPO-270 YPO-480 YPO-600 YPO-720 YPO-1000 Main Parameters: Temperature range: RT+25℃~200℃/300℃/400℃(other temps are optional) Temperature fluctuation: ±0.3℃ Temperature uniformity: ±1%℃(200℃)/±2%℃(300℃) Heat-up time depends on the size ...
