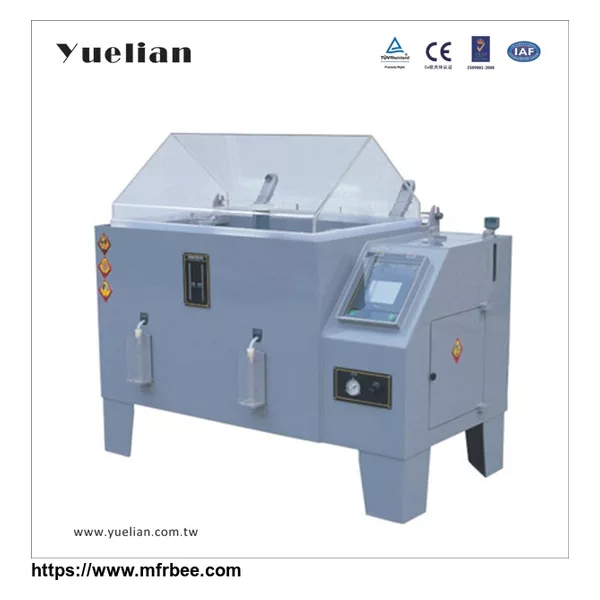

SAI series Touch Screen Salt Spray Test Chamber
Product sourcing details
- FOB Price
- USD $4,000.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China(Mainland)
- Salt Water Temperature
- 35℃±1℃
- Test Liquid
- NSS：Pure Water + Sodium Chloride (PH6.5～7.2)
- Power Supply
- AC 220V, 50HZ
- Packaging
- 1 set each plywood case
- Delivery
- 30 Days
Specifications
Product Summary
This company produces the series of SAI salt spray test chamber,is aimed at all kinds of plating,anodizing,coating on the surface,rust-proof oil, such as corrosion process, test the
corrosion resistance of their products;In order to try to make analysis and evaluation in a
specific environment conditions.
Testing Meet the Standard
GB/T10125-1997,GB/T10587-2006,GB/T1771-2007,GB10593.2-1990 ,QB/T 3826-1999
Technical Parameter
SAI Series | SAI-108 | SAI-270 | SAI-480 | SAI-800 | SAI-1440 | |||
Inner Size mm | W | 600 | 900 | 1200 | 1600 | 2000 | ||
D | 450 | 600 | 850 | 850 | 950 | |||
H | 400 | 500 | 500 | 550 | 600 | |||
Outside Size mm | W | 1130 | 1460 | 1900 | 2300 | 2700 | ||
D | 630 | 910 | 1150 | 1150 | 1350 | |||
H | 1070 | 1280 | 1500 | 1550 | 1600 | |||
Working chamber volume(L) |
108 | 270 | 480 | 800 | 1440 | |||
Brine tank capacity(L) | 15 | 25 | 90 | 90 | 120 | |||
Test Chamber temperature | （NSSS）Test Temperature： 35℃±1℃ | |||||||
Saturated Barrel Temperature | （NSS）Test Temperature： 47℃±1℃ | |||||||
Salt Water Temperature | 35℃±1℃ | |||||||
Test Liquid | NSS：Pure Water + Sodium Chloride (PH6.5～7.2) | |||||||
Compressed Air Pressure | 2kgf/cm2 | 2kgf/cm2 | 6kgf/cm2 | 6kgf/cm2 | 6kgf/cm2 | |||
Power Supply | AC 220V，1Ф, 50HZ | |||||||
