Purpose

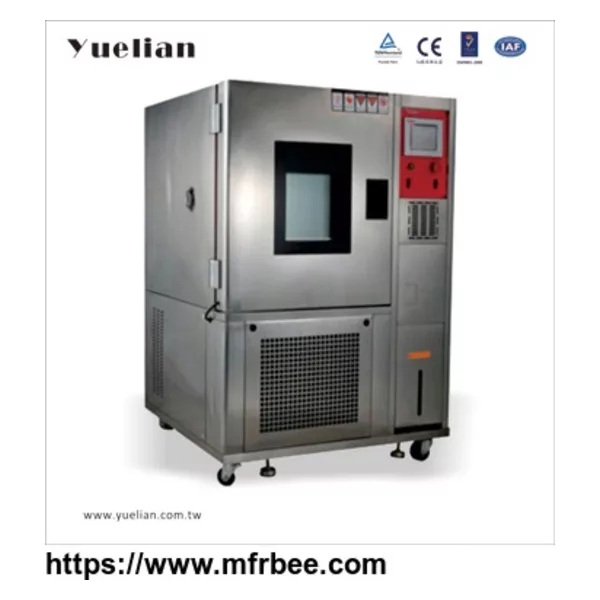

Constant temperature and humidity tester, as know as environmental testing machine, test various materials for their heat resistance, cold resistance, dry resistance, humidity resistance performance; suitable for electronics, electrical appliance, food, vehicles, metals, chemicals, building materials, bags, adhesive, printing, packing and other factories quality control purposes.

Main Features

1、Appearance: high-texture appearance, arc shape body, and matte fringe processing of surface, planar non-reactive handles, easy operation, safe and reliable.

2、View window: rectangle complex layers of glass view window can be used for observation specimen when doing testing. With anti-sweat heater unit of the window can prevent water vapor condensing water droplets, and high-brightness PL fluorescent lamp keeps box lighting.

3、Water supply system: with external connected water supply system, convenient to humidification and water supply, and automatic recycling and use.

4、Compressor: Compressor circulation system adopts French “Tecumseh” Brand, it is more effective to remove condenser tube and capillary lubricants, and full ranges of series adopt environmental refrigerants (R404,507)

5、Control Mode: adopt smart PID+SSR/SCR forward and inverse two-way synchronization output, containing advanced slope control logic.

6、Controller: with multi-stage program editing, and temperature and humidity can be made quick (QUICK) or slope (SLOP) control.

7、System Capacity: can login 150 group of programs x 1500 sections, sections can be divided freely, program can be interrelated freely.

8、Circulation Setting: can operate 9999x999 times circulation, and can be divided 5 groups of independent part circulation.

9、Time Signal: 3 groups of sequence control output interface, with 10 kinds of time control mode, convenient to operate START/STOP sequence plan of external drive component.

10、Safety Detector: 15 items of full-function system detects, ensure the safety of machine operation, and can automatic display failure time, items and resolved method.

Model

Model No.

HL-80

HL-150

HL-220

HL-408

HL-800

Interior Dimension（W×H×D）CM

40×50×40

50×60×50

50×75×60

60×85×80

100×100×80

Exterior Dimension（W×H×D）CM

93×131×81

103×141×91

108×162×112

117×172×132

160×187×132

Volume（L）

150

225

408

800

Specification

Heating Speed:

0℃~100℃ approx 20min, -20℃~100℃ approx 35min, -40℃~100℃ approx 45min, -70℃~00℃ approx 60min

Cooling Speed:

20℃~0℃ approx 20min, 20℃~-20℃ approx 45min, 20℃~-40℃ approx 60min, 20℃~-70℃ approx 90min

Temp. Range:

0℃, -20℃, -40℃, -70℃~150℃

Temp. Uniformity :

±0.5℃

Humidity Uniformity :

±3%

Temp. Stability :

±0.3℃

Humidity Stability :

±2.5%RH

Humidity Range:

20%~98%RH (can be customized according to customers’ requirement, low humidity type can reach to 5%RH)

Programme Control :

Use high stability platinum thermometric resistance, LCD Chinese & English touch screen, 120 groups 1200 sections of program, 999 times of circulation setting, attach multi-group PID control function, with RS-232 PC interface control.

Heating System:

SUS#304, stainless steel heater

Humidification System:

Surface evaporative, attach humidifier, hydropenia, power failure and over-heat protection

Dehumidification System:

Frozen latent heat dehumidification method

Cooling System:

Above -20℃ adopt unary full-closed air-cooled refrigeration system, below -40℃ adopt binary full-closed air-cooled refrigeration system

Water Supply:

Built-in pure water generator, without artificial water, direct running water and with hydropenia warning device.

Interior and Exterior Material :

SUS#304, all stainless steel

Insulation Material :

Rockwool and rigid PU foam insulation

Protection Device:

Breaker, compressor over-load protection relay, refrigerant high pressure switch, ultra-temperature, power failure, protection switch, temperature limited protection, failure warning system

Temp. & Humid. Adjustment :

Balance adjustment temperature and humidity mode.

Standard Device:

Automatic demist glass window, upper and lower adjustable compartment 2pcs, test hole, operation room light, mobile wheel

Optional Accessories:

Recorder

Power Supply:

AC220V/380V±10%，50/60Hz

Standard:

GB, ISO, ASTM, UL, CEN
