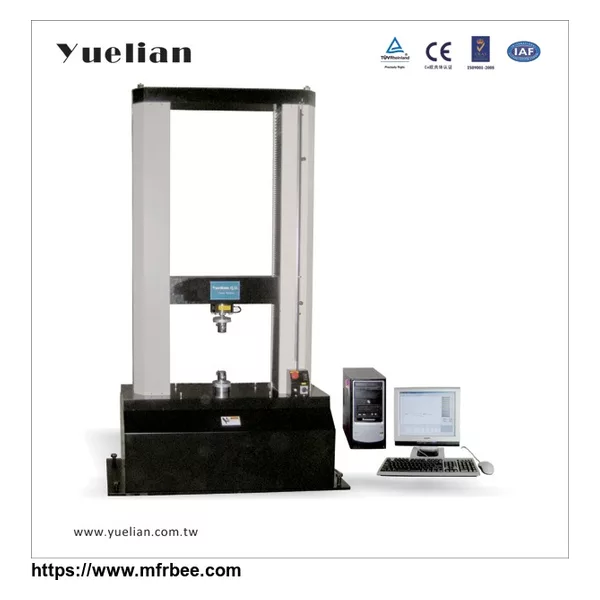

Feature

Rigid frame structure is not easy to be deformed. Precise servo motor and such as ball screw driving parts supply with stable test speed. Strong and functional computer system provides a complete test function; assemble with different grips/accessories are able to do various material test.

Standard

ISO 7500-1 , JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2, BS1610,GB T228

Specification

Capacity:

1KN, 2KN, 5KN, 10KN, 20KN, 50KN, 100KN (Available for double capacities)

Display

Computer display

Force Resolution

1/500,000

Force Accuracy

≤±0.3%

Stroke Resolution

1/500,000

Control Mode

Full computer operating mode

Test Stroke:

1000mm

Distance between two columns(Test Width):

550mm

Test speed:

0.001~1000mm/min Computer set with up and down quick adjustment button of grips

Stop Mode:

Overload stop, emergency stop, specimen damage automatic stop, upper and lower limit automatic stop, automatic reset function

Machine Drive:

Servo-motor driven, synchronous wheel and precision ball screw drive

Force sensor:

Load Cell comply with ASTM-E4 standard which accuracy is limited within 1.0 %

Dimension:

92*75*199cm (W*D*H)

Weight:

About 1150kg

Power:

1500W

Voltage:

220V 50/60HZ 10A

Accessories

1 set of grips, test software, USB computer connection wire

Optional:

Personal computer
