Purpose

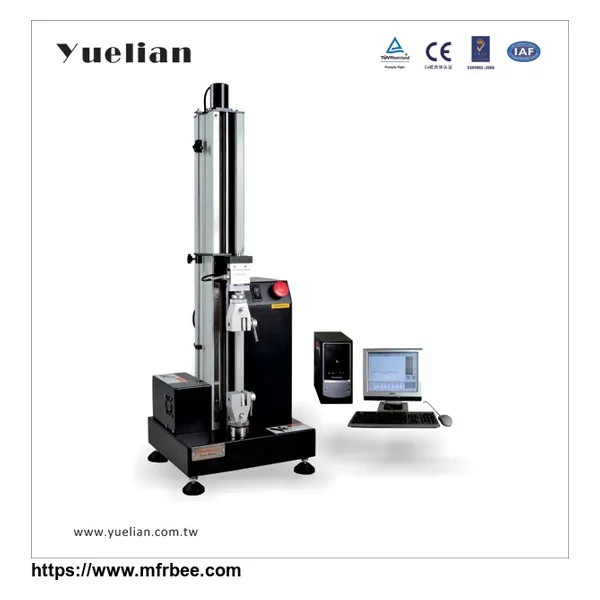

This tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.

Function

1. Can conduct tensile, compression, peeling, tearing, shearing, ring initial adhesion and other test

2. Can display force and displacement at the same time

3. Adopt stepper motor drive, precision ball screw drive, set test speed by computer directly.

4. Up & low fine-turning switch, automatic back after test finished

5. Quick-release connector, can use various grips

6. All computerized operation, USB interface, conduct data analysis

Specification

Capacity:

10N, 20N, 50N, 100N, 200N, 500N, 1KN (can select double capacities preparation)

Display:

Computer display mode

Force Resolution:

1/500,000

Force Accuracy:

≤±0.3%

Stroke Resolution:

0.005mm

Control Mode:

All computerized operation mode.

Test Stroke:

500mm

Test Width:

Ø55mm

Test Speed:

5~500mm/min, can set by computer, with up & down fast adjustment button of grips

Force Unit Switch:

Kgf, N, Ibf, g, ton, Mpa

Stop Mode

Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function

Machine Dimension:

40×30×70cm (W×D×H)

Machine Drive:

Stepper motor drive, synchronous wheel and precision ball screw drive

Power:

180W

Machine Weight:

Approx 28kg

Power Supply:

220V 50/60HZ 10A

Standard Device:

1 set of grips, computer software, USB computer connection wire

Optional:

Personal computer
