Pancake Slip Ring
Pancake slip ring is designed for the limited rotation system in height direction, which it is a special kind of conductive slip ring and its shape just like a plate. The rotor part of pancake slip ring with use of coils of concentric ring to carry current signal, the brush distributes at the top of the concentric ring as the stator. Whereas, use insulation materials to insulate between ring and ring. As we know that, pancake design slip ring could accept comprehensive load, large and huge instruction size, also it enjoys the features of compact design, sensitive rotary, easy installation and maintenance.
If you have specific customized requirement, please feel free to consult us so that our sales engineer could recommend the most suitable product to you for you reference.
Features:

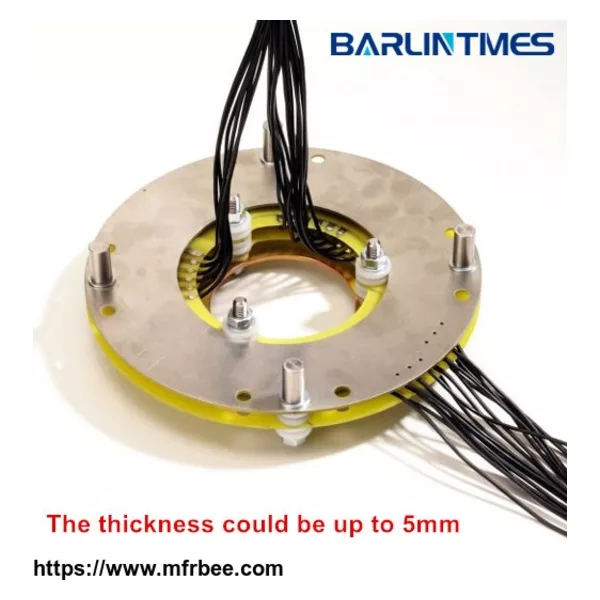

1. The thickness could be up to 5mm as per demand
2. Power and various signal combination
3. Smooth operation and reliable performance
4. Low work speed and low electrical noise
5. Compact structure & maintenance free
Option:
1. Separate PCB design or solid design could be optional
2. Different materials ( contact materials and housing materials )
3. Dimension
4. Circuits & Current & Voltage
5. Lead wire size and length
6. Work speed
7. Installation method as per request
Application:
1. Lifting transport machinery
2. Heavy engineering machinery
3. Mining equipment
4. Construction machinery
5. Port equipment
6. Wind turbine generator
7. Medical machine
8. Radar & Missile launcher
Specification | |
Circuits | 5 circuits @ 2A, 2 circuits @ 10A |
Work Speed | 50RPM max |
Work Temperature | -20℃-+60℃ |
Work Humidity | 60%RH or higher |
Voltage Rating | 380VAC/DC |
Through Hole Size | 80mm |
Dielectric Strength | 1000VAC@50Hz between each circuit |
Electrical Noise | 1mΩ Min |
Contact Materials | Precious Metal |
Lead Wire Size | AWG28&AWG17 Teflon® UL |
Lead Wire Length | Standard300mm |
Housing Materials | Aluminum Alloy |
Design | Separate PCB |
Protection | IP54 |
