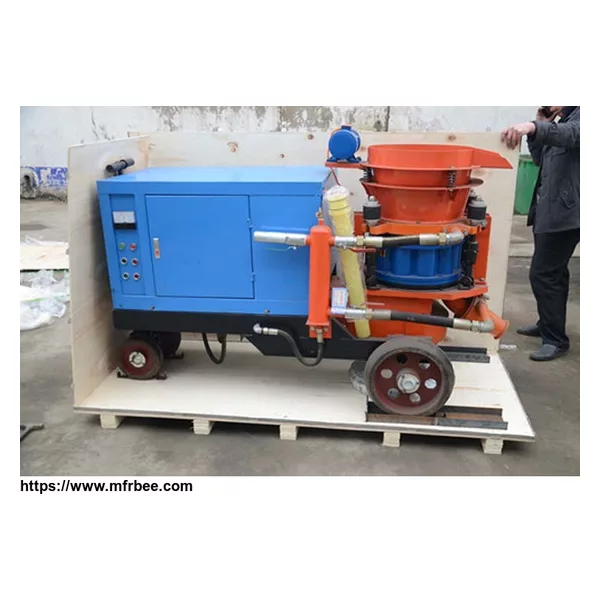

construction shotcrete machine , wet shotcrete machine , mortar shotcrete machine
Product features chinacoal10
1, apply to wet spray technology, low dust concentration (< 20 mg/m3), rebound rate small (average no more than 15%);
2, use no sticky materials rotor patent technology, and elastic material cup not binding jams, without the need to clear;
3 and elastic discharge elbow not binding, no block.
4, high efficiency, wards discharging even, jet concrete quality is good;
5, the wedge pin tighten and flip hinged structure, installation is convenient;
6, the overall cleaning the board, will cover all lining board, cleaning result reliable;
7, the structure is simple, reliable performance;
8, lining board, combined with board of vulnerable more durable.
| Model | HSP-9 |
| Output | 6-9m³/h |
| Max. Convey Distance | Horizontal:30m; Vertical: 20m |
| Max. Aggregate Size | Ø 15mm |
| Hose Inner Size | Ø 51mm/64mm |
| Operating Pressure | 0.4~0.6MPa |
| Air Consumption | 10-15m³/min |
| Rotor Diameter | Ø 480mm(175) |
| Average Rebound Rate | ≤10% |
| liquid accelerator additive amount | 0.3-0.7% |
| Motor Power | Y160m-6-7.5KW |
| Voltage | |
| Accelerator metering pump | Air Motor |
| Dimension(mm) | 2000*800*1300 |
| Net Weight | 900kg |
