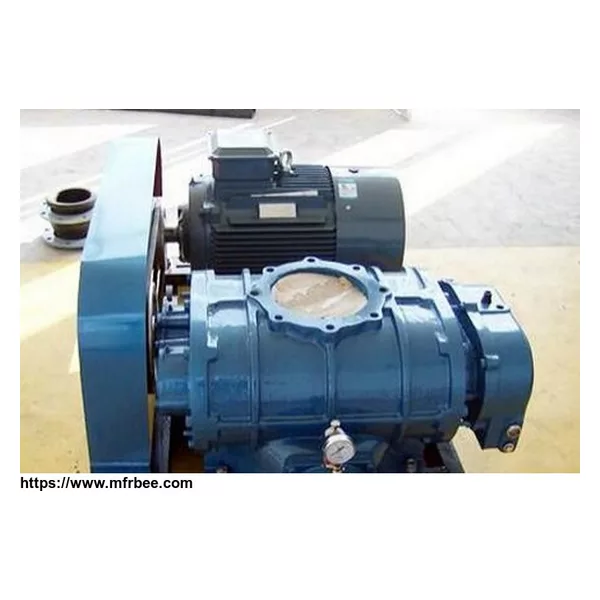

ZJP Series Rotary Varactor Roots Vacuum Pump

Minimum Order
1
Packaging
N/A
Delivery
15 Days

Vacuum Pump, Rotary Varactor Roots Vacuum Pump,ZJP Series Rotary Varactor Roots Vacuum Pump

Specifications chinacoal10

vacuum pump
1.pumping speed:70-1200L/S
2.Power:1.1-22kw

Introduction:

The pump consists of two figure “8” shaped rotors and two semicircular pump houses. The rotors rotate synchronously in

opposite directions and high speeding. The pump cannot be used singly; it must be used as boosters combined with a backing

pump such as a rotary piston or a rotary vane vacuum pump, or a liquid ring vacuum pump. These vacuum systems can get higher

vacuum, a stable, fairly high pumping speed can be gained in effective pressure range. The backing pump decides the ultimate

pressure of roots pump. The data of the list is lowest ultimate pressure with the standard equipment (equipped double stage oil machine vacuum pump).

The Roots pumps are widely used in vacuum moulding, vacuum smelting, vacuum gas pumping, vacuum coating industry, vacuum distilling and vacuum

drying of chemical and pharmaceutical industry etc. The pump is insensitive to a little dust.

Features:
1. The lack of reciprocating parts allows a perfect dynamic balancing, because the rotors is processed by numerical control machine tool and balanced carefully.

It has perfect geometry symmetry. There is certain clearance between the two rotors. The pump house and end

cover is processed by especial machine tool. It has high precision. So the pump own feature of stable operation, low noise, low vibration and high ultimate pressure.

2. The robust drive of ump and operating parts balanced carefully permit that the pump be stably operated continuously under the condition of high different pressure.

3.They can be started quickly, and in short time ultimate pressure is reached

4. Lubrication is unnecessary as there is no contact between rotors, rotor and house, that avoid oil vapor from polluting vacuum system.

5. Good reliability characteristic. Their inherent overflow valve play auto-protective role.

6. Compact structure, low footprint design. There are three gas outlet ports that are in left, right and under pump house. It is convenient for consumer installing.

Model ultimate pressure
Pa
pumping speed
L/S
maximum permissible different pressure
(hPa)
inlet&outlet diameter
mm
motor power
(kw)
weigh
(Kg)
hPa Torr inlet outlet
ZJP-70 3X10-4 2X10-4 70 40 80 50 1.1 120
ZJP-150 3X10-4 2X10-4 150 40 100 100 3 220
ZJP-300 3X10-4 2X10-4 300 40 150 150 4 300
ZJP-600 3X10-4 2X10-4 600 27 200 200 5.5/7.5 575
ZJP-1200 1X10-4 8X10-4 1200 27 250 200 11/15 860
  • Country: China (Mainland)
  • Business Type:
  • Market:
  • Founded Year:1982
  • Address:
  • Contact:ping zhang
