Uninterrupted Power Supply three Phase online UPS 10-30kva with LCD display
Product sourcing details
- FOB Price
- USD $500.00 / Piece
- Minimum Order
- 5
- Place Of Origin
- china
- Packaging
- Cartons & Wooden Pallet
- Delivery
- 15 Days
Specifications
Uninterrupted Power Supply three Phase online UPS 10-30kva with LCD display

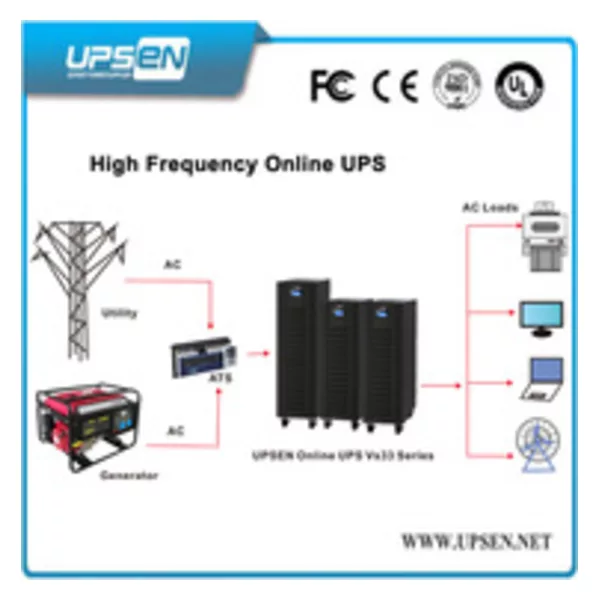

Model: High Frequency Online UPS View Star Series 10K-30Kva (3ph in/3ph out)
Key Features
1: High reliability design
2: Humanization bypass output can be adjustable
3: DSP Double-Conversion On-line Sinewave Design
4: built-in automatic and manual battery test feature
5: Advanced no-master-slave parallel technology (optional)
6: Dual change online design,guarantee the pure sine power output.
7: Double conversion on-line design, including output isolation transformer
8: wide input range which is suitable for very unstable power supply situation
9: Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
10: Auto restart after utility power restore when ups shutdown due to battery low
11: Excellent input frequency range makes UPS suitable to different power supply devices
12: Smart local and distant monitoring capability with RS232 port, and compatible with SNMP
Applications:
Automotive, vehicle, boats, civil office, industrial, Railway power generation, industrial control, communications exchange,Emergency lighting equipment,Fire alarm and security systems,Telecommunication equipment etc.
Technical Specification
VIEW STAR SERIES ONLINE UPS SELECTION GUIDE | |||||
| MODEL | VS31 10K (L) | VS31 15K (L) | VS31 20K (L) | VS31 30K (L) | |
| PHASE | 3 phase in / 1 phase out | ||||
| CAPACITY | 10000 VA / 8000 W | 15000 VA/12000 W | 20000 VA/16000 W | 30000VA/24000W | |
| INPUT | |||||
| Nominal Voltage | 3 x 400 VAC (3Ph+N) | ||||
| Voltage Range | 305-478 VAC (3-phase) @ 100% load 190-520 VAC (3-phase) @ 50% load | ||||
| Frequency Range | 46~54 Hz or 56~64Hz | ||||
| Power Factor | >= 0.99 @ 100% load | ||||
| OUTPUT | |||||
| Output Voltage | 208/220/230/240VAC | ||||
| AC Voltage Regulation (Batt. Mode) | ± 1% | ||||
| Frequency Range (Synchronized Range) | 46~54 Hz 50 Hz / 56~64 Hz 60 Hz | ||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||||
| Current Crest Ratio | 3:1 (Max) | ||||
| Harmonic Distortion | Less than 2 % THD (Linear Load) Less than 5 % THD (Non-linear Load | ||||
| Transfer Time | AC Mode to Batt. Mode | zero | |||
| Inverter to Bypass | zero | ||||
| Waveform (Batt. Mode) | Pure Sine Wave | ||||
| EFFICIENCY | |||||
| AC Mode | 89% | 89% | 89% | 90% | |
| Battery Mode | 86% | 88% | 87% | 89% | |
| BATTERY | |||||
| Standard Model | Battery Type | 12 V / 9 AH | |||
| Numbers | 16 pcs | 16 pcs x 2 strings | 16 pcs x 3 strings | ||
| Typical Recharge Time | 9 hours recover to 90% capacity | ||||
| Charging Current (max.) | 1A | 2A | 2A | 2A | |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) | ||||
| Long-run Model | Battery Type | Depending on the capacity of external batteries | |||
| Numbers | 16pcs(192V) | 16pcs(192V) | 16pcs(192V) | 20pcs(240V) (18-20adjustable) | |
| Charging Current (max.) | 4A | 4A | 4A | 12A | |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) | ||||
| INDICATORS | |||||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions | ||||
| ALARM | |||||
| Battery Mode | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Overload | Sounding twice every second | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| Standard Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 815 x 250 x 826 | 815*300*1000 | |
| Net Weight (kgs) | 83 | 164 | 234 | ||
| Long-run Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 592 X 250 X 576 | 815 x 250 x 826 | |
| Net Weight (kgs) | 28 | 40 | 64 | ||
| ENVIRONMENT | |||||
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) | ||||
| Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter | ||
| MANAGEMENT | |||||
| Smart RS-232 | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC | ||||
| USB | |||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||
* Long-run model is only available in 200/208/220/230/240VAC systems.
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB boards
2: Full protection against over-discharge, overcharge, over load.
3: Strong shock resistance ability
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
- Company: Shenzhen UPSEN Electric Co., Ltd.
- Country: China (Mainland)
- Business Type: UPS,Inverter,Battery,Controller,Solar Power,UPS Power,UPS System,Online UPS,Power Inverter,DC AC Inverter
- Founded Year: 2002
- Contact: nancy zhao
