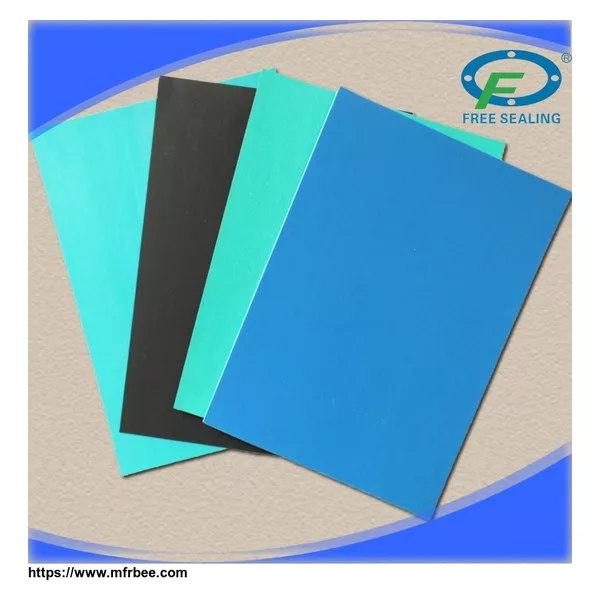

Compressed Non-asbestos Jointing Sheet

Company: Shanghai Free Sealing Technologies Co.,Ltd
Country: China (Mainland)
Business Type: Manufacturer
Market: Americas,Europe,Asia,Middle East
Founded Year: 2009
Contact: Shirley Jiang

*Material composition

Made from Aramid fibre, mineral fibre & inorganic fillers bonded with NBR.

*Specifications

1.100% Non-asbestos
2.Wide range of temperature
3.Good abrasion resistance, ageing resistance
4. Excellent air sealability
5.Oil, heat, acid alkali resistant
6.Good flexility
7.Gasket Material produced by ourselves

Model	FRQ-350
Description	Made from Aramid fiber, mineral fiber & inorganic fillers bonded with Synthetic NBR
Application	Suitable for oil resistant gasket material for medium loading, good resistance to water gases, oils and fuels, recommend used in the auto,engine and motorcycle application
Properties	Test Method	Unit	Data range
Density	-	g/cm3	1.65±0.1
Max short term temperature		°C	450
Max continuous operating temperature		°C	250
Tensile Strength (across)	ASTM F152	N/mm2	≥12
Compressibility	ASTM F36J	%	12±5
Recovery	ASTM F36J	%	≥50
Creep Relaxation	ASTM F38 16h @175°C	%	≤30
Ignition loss	DIN 52911	%	≤30
Sealability(Nitrogen)	DIN3535	Cm3/min	≤1.0
ASTM3# oil 5h@150°C	Tensile strength(across)	Mpa	≥8
	Thickness increase	%	≤10
	Weight increase	%	≤15
ASTM Fuel B 5h@RT	Tensile strength(across)	Mpa	≥6
	Thickness increase	%	≤10
	Weight increase	%	≤15
Dimension		mm	1500×1500
Thickness		mm	0.5,0.8,1.0,1.5,2.0,
